Running Athena queries targeting a database called s3_spectrum. (This database was reused from a Redshift Spectrum verification.)
AWS CLI
With AWS CLI, you use start-query-execution to run the query and get the query execution ID, then check the results with another API call. (Somewhat cumbersome.)
start-query-execution
aws athena start-query-execution --query-string "select * from supplier limit 2;" --query-execution-context Database=s3_spectrum --result-configuration OutputLocation=s3://xxxx/
get-query-execution
aws athena get-query-execution --query-execution-id 16751da3-a267-4958-91dd-678c02d2af26
get-query-results
aws athena get-query-results --query-execution-id 16751da3-a267-4958-91dd-678c02d2af26
Execution Results
get-query-results outputs in JSON format, so you may want to use the jq command to format it, or download the CSV output stored in S3.
[ec2-user@ip-10-0-1-31 ~]$ aws athena start-query-execution --query-string "select * from supplier limit 2;" --query-execution-context Database=s3_spectrum --result-configuration OutputLocation=s3://xxxx/
{
"QueryExecutionId": "16751da3-a267-4958-91dd-678c02d2af26"
}
[ec2-user@ip-10-0-1-31 ~]$ aws athena get-query-execution --query-execution-id 16751da3-a267-4958-91dd-678c02d2af26
{
"QueryExecution": {
"QueryExecutionId": "16751da3-a267-4958-91dd-678c02d2af26",
"Query": "select * from supplier limit 2",
"StatementType": "DML",
"ResultConfiguration": {
"OutputLocation": "s3://xxxx/16751da3-a267-4958-91dd-678c02d2af26.csv"
},
"QueryExecutionContext": {
"Database": "s3_spectrum"
},
"Status": {
"State": "SUCCEEDED",
"SubmissionDateTime": 1625791317.39,
"CompletionDateTime": 1625791318.366
},
"Statistics": {
"EngineExecutionTimeInMillis": 761,
"DataScannedInBytes": 332580,
"TotalExecutionTimeInMillis": 976,
"QueryQueueTimeInMillis": 191,
"QueryPlanningTimeInMillis": 89,
"ServiceProcessingTimeInMillis": 24
},
"WorkGroup": "primary"
}
}
[ec2-user@ip-10-0-1-31 ~]$ aws athena get-query-results --query-execution-id 16751da3-a267-4958-91dd-678c02d2af26
{
"ResultSet": {
"Rows": [
{
"Data": [
{
"VarCharValue": "s_suppkey"
},
{
"VarCharValue": "s_name"
},
～omitted～
},
"UpdateCount": 0
}
athenacli

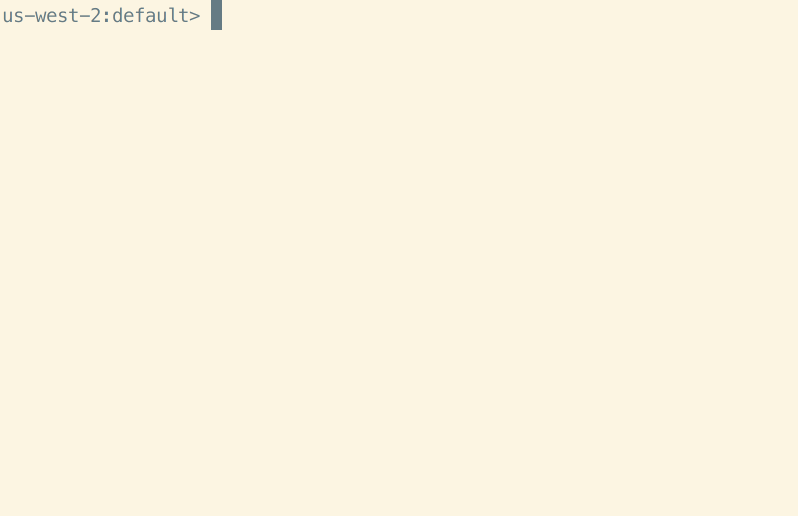

AthenaCLI is a command-line interface (CLI) for the Athena service that supports auto-completion and syntax highlighting, similar to CLI tools for PostgreSQL and MySQL. Unlike AWS CLI, it lets you see results in CSV or readable format with a single query execution without multiple API calls.
Install athenacli
pip install athenacli
Edit Configuration File
The configuration file is at ~/.athenacli/athenaclirc:
vi ~/.athenacli/athenaclirc
Only Region and s3_staging_dir are defined. Access keys are omitted since we’re using an IAM role:
[aws_profile default]
# If you are a user of aws cli, you might want to use some configurations of aws cli,
# please refer to https://athenacli.readthedocs.io/en/latest/awsconfig.html for more infomation.
aws_access_key_id = ''
aws_secret_access_key = ''
region = 'ap-northeast-1' # e.g us-west-2, us-east-1
# Add role_arn to assume a role required for Athena access
role_arn = '' # e.g. arn:aws:iam::987654321000:role/MyAthenaAccessRole
# Amazon S3 staging directory where query results are stored
# NOTE: S3 should in the same region as specified above.
# The format is 's3://<your s3 directory path>'
s3_staging_dir = 's3://athenadatacsv/'
# Name of athena workgroup that you want to use
work_group = 'primary' # e.g. primary
～omitted～
You can also run it using environment variables:
export AWS_ACCESS_KEY_ID=YOUR_ACCESS_KEY_ID
export AWS_SECRET_ACCESS_KEY=YOUR_SECRET_ACCESS_KEY
export AWS_DEFAULT_REGION=ap-northeast-1
export AWS_ATHENA_S3_STAGING_DIR=s3://YOUR_S3_BUCKET/path/to/
Execution
Passing SQL as an argument:
[ec2-user@ip-10-0-1-31 .athenacli]$ athenacli s3_spectrum -e 'select * from supplier limit 2'
s_suppkey,s_name,s_address,s_city,s_nation,s_region,s_phone
1,Supplier#000000001," N kD4on9OM Ipw3,gf0J",PERU 0,PERU,AMERICA,27-989-741-2988
2,Supplier#000000002,89eJ5ksX3Imx,ETHIOPIA 1,ETHIOPIA,AFRICA,15-768-687-3665
[ec2-user@ip-10-0-1-31 .athenacli]$
Running interactively on the command line:
[ec2-user@ip-10-0-1-31 .athenacli]$ athenacli s3_spectrum
ap-northeast-1:s3_spectrum> select * from supplier limit 2;
+-----------+--------------------+-----------------------+------------+----------+----------+-----------------+
| s_suppkey | s_name | s_address | s_city | s_nation | s_region | s_phone |
+-----------+--------------------+-----------------------+------------+----------+----------+-----------------+
| 1 | Supplier#000000001 | N kD4on9OM Ipw3,gf0J | PERU 0 | PERU | AMERICA | 27-989-741-2988 |
| 2 | Supplier#000000002 | 89eJ5ksX3Imx | ETHIOPIA 1 | ETHIOPIA | AFRICA | 15-768-687-3665 |
+-----------+--------------------+-----------------------+------------+----------+----------+-----------------+
2 rows in set
Execution time: 773 ms, Data scanned: 320.58 KB, Approximate cost: $0.00
Time: 1.349s
ap-northeast-1:s3_spectrum>
For detailed runtime configuration options, refer to the GitHub readme:
