EC2Assuming EFS has already been created in the Management Console…
Installing amazon-efs-utils
sudo yum -y install amazon-efs-utils
Creating the Mount Directory
sudo mkdir /mnt/efs
sudo chown ec2-user:ec2-user /mnt/efs
sudo mount -t efs fs-xxxxx:/ /mnt/efs
echo $?

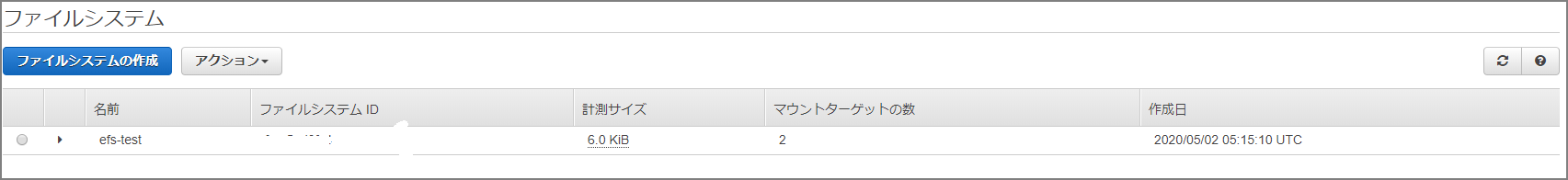

Specify the filesystem ID as fs-xxxxx.
Verify with df that EFS is mounted:
[ec2-user@bastin ~]$ df -h
Filesystem Size Used Avail Use% Mounted on
devtmpfs 475M 0 475M 0% /dev
tmpfs 492M 0 492M 0% /dev/shm
tmpfs 492M 436K 492M 1% /run
tmpfs 492M 0 492M 0% /sys/fs/cgroup
/dev/xvda1 20G 6.5G 14G 33% /
tmpfs 99M 0 99M 0% /run/user/1000
fs-xxxxxx.efs.ap-northeast-1.amazonaws.com:/ 8.0E 0 8.0E 0% /mnt/efs
[ec2-user@bastin ~]$
Add to /etc/fstab to auto-mount on reboot:
fs-xxxxx:/ /mnt/efs efs defaults,_netdev 0 0
Quick Performance Test (dd Command)
[ec2-user@bastin efs]$ dd if=/dev/zero of=/mnt/efs/write.txt ibs=4k obs=4k count=2048
2048+0 records in
2048+0 records out
8388608 bytes (8.4 MB) copied, 1.34538 s, 6.2 MB/s
fio Command
sudo yum install -y fio
fio --version
With Block Size of 4k
-- sequencial read
fio -filename=/mnt/efs/fio_test -direct=1 -rw=read -bs=4k -size=2G -numjobs=64 -runtime=10 -group_reporting -name=file1
-- ramdom read
fio -filename=/mnt/efs/fio_test -direct=1 -rw=randread -bs=4k -size=2G -numjobs=64 -runtime=10 -group_reporting -name=file1
-- sequencial write
fio -filename=/mnt/efs/fio_test -direct=1 -rw=write -bs=4k -size=2G -numjobs=64 -runtime=10 -group_reporting -name=file1
-- ramdom write
fio -filename=/mnt/efs/fio_test -direct=1 -rw=randwrite -bs=4k -size=2G -numjobs=64 -runtime=10 -group_reporting -name=file1
Results
#sequencial read
read : io=151396KB, bw=15114KB/s, iops=3778, runt= 10017msec
#ramdom read
read : io=427984KB, bw=42739KB/s, iops=10684, runt= 10014msec
#sequencial write
write: io=9192.0KB, bw=912516B/s, iops=222, runt= 10315msec
#ramdom write
write: io=9848.0KB, bw=980300B/s, iops=239, runt= 10287msec
With Block Size of 32m
-- sequencial read
fio -filename=/mnt/efs/fio_test -direct=1 -rw=read -bs=32m -size=2G -numjobs=16 -runtime=10 -group_reporting -name=file1
-- ramdom read
fio -filename=/mnt/efs/fio_test -direct=1 -rw=randread -bs=32m -size=2G -numjobs=16 -runtime=10 -group_reporting -name=file1
-- sequencial write
fio -filename=/mnt/efs/fio_test -direct=1 -rw=write -bs=32m -size=2G -numjobs=16 -runtime=10 -group_reporting -name=file1
-- ramdom write
fio -filename=/mnt/efs/fio_test -direct=1 -rw=randwrite -bs=32m -size=2G -numjobs=16 -runtime=10 -group_reporting -name=file1
Results
#sequencial read
read : io=1536.0MB, bw=109990KB/s, iops=3, runt= 14300msec
#ramdom read
read : io=1504.0MB, bw=110196KB/s, iops=3, runt= 13976msec
#sequencial write
write: io=1504.0MB, bw=108404KB/s, iops=3, runt= 14207msec
#ramdom write
write: io=1472.0MB, bw=109808KB/s, iops=3, runt= 13727msec
Other

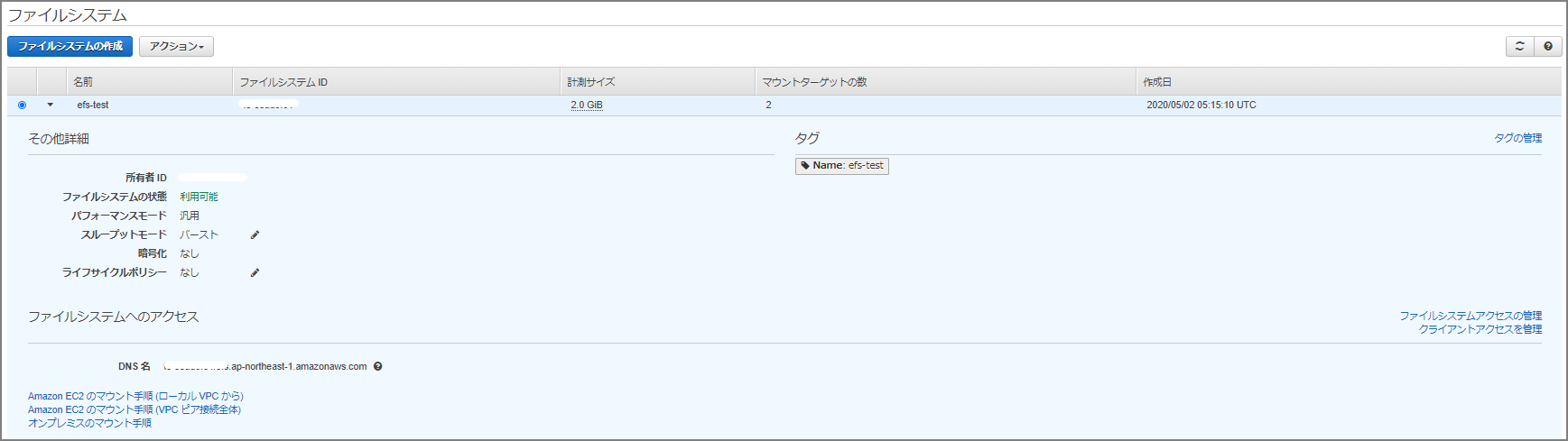

[ec2-user@bastin ~]$ nslookup fs-xxxxxx.efs.ap-northeast-1.amazonaws.com
Server: 10.0.0.2
Address: 10.0.0.2#53
Non-authoritative answer:
Name: fs-xxxxxxx.efs.ap-northeast-1.amazonaws.com
Address: 10.0.2.177
[ec2-user@bastin ~]$
