Oracle Partiotionオプションの代替策(View+Trigger)を試してみる

はじめに

下記に検討した内容の続きとして、Oracle Partitionの代替案というのをやってみた。

Oracle Enterprise EditionからStandard Editionへのダウングレード検討メモ | my opinion is my own https://zatoima.github.io/oracle-ee-se2-migration-to-aws-rds-for-oracle.html

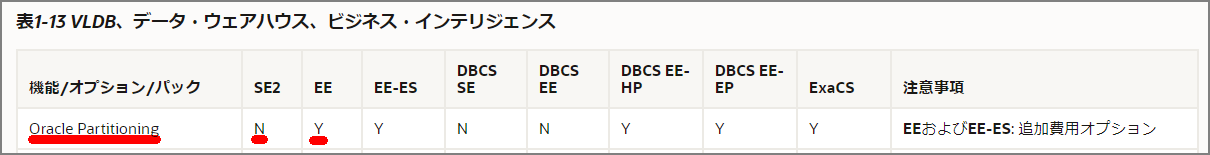

大規模テーブルや履歴データなどはパーティション機能を使うことはよくあるが、Oracle EEからSE2へのダウングレードを検討する場合は、Partitionオプションを使用できないため、どうにかする必要がある。

image-20210424204828292

パーティションを使う理由というのはいくつかあって、下記が代表的なメリットとして考えられる。

  1. パーティションプルーニングを行うことでの性能向上
  2. パーティション単位でパラレル化出来ることによる性能向上
    • 複数パーティションに跨って検索する場合に有効
  3. パーティション単位でドロップ出来ることでの運用性向上
    • これが出来ない場合は、DELETE文を発行する必要があり、IO的にも時間的にも厳しい

少し調べてみるといくつかの代替策が見つかったので、今回はその代替案を実施してみる。参考にしたのはこのあたり。この記事では疑似パーティションと呼ぶ

Implementing table partitioning in Oracle Standard Edition: Part 1 | AWS Database Blog https://aws.amazon.com/jp/blogs/database/implementing-table-partitioning-in-oracle-standard-edition-part-1/

Partitioning and Oracle Standard Edition | Oracle FAQ https://www.orafaq.com/node/2992

Oracle Partitioning and Standard Edition | the gruffdba https://gruffdba.wordpress.com/2018/08/05/oracle-partitioning-and-standard-edition/

Oracle SEでINSERT TRIGGERとVIEWで作るパーティション - kenken0807_DBメモ https://kenken0807.hatenablog.com/entry/2015/07/21/161333

パーティション代替の仕組みのイメージ図

下記の図に書いている通り、TriggerとViewを使用した代替案となる。この方法はOracleでPartitionが実装されている前(Oracle 7時代?)はこの方法であり、PostgreSQLの9.6以前は継承とトリガーを使った方式になっていてこのイメージ図に近い。

疑似パーティションテーブル郡を増やす場合には、TableやView定義、及びTriggerの修正が必要となってくるので運用面で大丈夫かは別途確認する必要がある。

ポイントとしては次の通り(ここではレンジパーティションをイメージ)

流れ

この方法を試すにあたり、移行元(EEのパーティション表構成)と移行先の環境(疑似パーティション構成)での性能検証比較を主にやりたかったので下記の流れで実施する。

  1. EEのパーティション表を使用

    • 大容量テーブルを作ってEEのパーティション機能を使って性能の簡易検証を実施
    • パーティション有り無し、索引有り無しを検証
  2. 疑似パーティションを使用

    • 環境構成は 1.EEのパーティション表を使用 と一緒。パーティション部分を疑似パーティション構成とする

    • 疑似パーティション有り無し、索引有り無しを検証

EEのパーティション表を使用

環境作成からスタート

ユーザ作成

drop user TESTPART;
create user TESTPART identified by oracle;
grant dba to TESTPART;
conn testpart/oracle@rdsoraclev19c.xxxx.ap-northeast-1.rds.amazonaws.com:1521/ora19c

パーティションテーブルを作成

CREATE TABLE PARTTEST_EE_PART(
  id number,
  ymd DATE,
  str1 VARCHAR(120),
  str2 VARCHAR(500),
  str3 VARCHAR2(10),
  str4 NUMBER(9,0)
)
PARTITION BY RANGE(ymd)
(
  PARTITION ymd_p00 VALUES LESS THAN(TO_DATE('2010/01/01','YYYY/MM/DD')),
  PARTITION ymd_p01 VALUES LESS THAN(TO_DATE('2011/01/01','YYYY/MM/DD')),
  PARTITION ymd_p02 VALUES LESS THAN(TO_DATE('2012/01/01','YYYY/MM/DD')),
  PARTITION ymd_p03 VALUES LESS THAN(TO_DATE('2013/01/01','YYYY/MM/DD')),
  PARTITION ymd_p04 VALUES LESS THAN(TO_DATE('2014/01/01','YYYY/MM/DD')),
  PARTITION ymd_p05 VALUES LESS THAN(TO_DATE('2015/01/01','YYYY/MM/DD')),
  PARTITION ymd_p06 VALUES LESS THAN(TO_DATE('2016/01/01','YYYY/MM/DD')),
  PARTITION ymd_p07 VALUES LESS THAN(TO_DATE('2017/01/01','YYYY/MM/DD')),
  PARTITION ymd_p08 VALUES LESS THAN(TO_DATE('2018/01/01','YYYY/MM/DD')),
  PARTITION ymd_p09 VALUES LESS THAN(TO_DATE('2019/01/01','YYYY/MM/DD')),
  PARTITION ymd_p10 VALUES LESS THAN(TO_DATE('2020/01/01','YYYY/MM/DD')),
  PARTITION ymd_p11 VALUES LESS THAN(TO_DATE('2021/01/01','YYYY/MM/DD'))
);

100万件のデータ作成

INSERT /*+ APPEND */ INTO PARTTEST_EE_PART NOLOGGING
SELECT
  parttest_seq.nextval,
  TO_DATE('20100101','YYYYMMDD') +MOD(ABS(DBMS_RANDOM.RANDOM()),TO_DATE('20200101','YYYYMMDD')-TO_DATE('20100101','YYYYMMDD')) DT
  ,DBMS_RANDOM.STRING('X', 50)
  ,'あいうえおかきくけこさしすせそ'
  ,TO_CHAR(ABS(DBMS_RANDOM.RANDOM()),'FM0000000000') CD
  ,MOD(DBMS_RANDOM.RANDOM(),100000) KIN
FROM
(SELECT 0 FROM ALL_CATALOG WHERE ROWNUM <= 1000)
,(SELECT 0 FROM ALL_CATALOG WHERE ROWNUM <= 1000);
commit;

データをInsert ~ Selectで増幅(たくさん)

insert into PARTTEST_EE_PART NOLOGGING select * from PARTTEST_EE_PART;
commit;
select count(*) from PARTTEST_EE_PART;

約1億件ちょっと

SQL> select count(*) from PARTTEST_EE_PART;
    COUNT(*)
____________
   128000000

num_rowsを確認するために統計情報収集

exec DBMS_STATS.GATHER_TABLE_STATS(ownname=>'TESTPART',tabname=>'PARTTEST_EE_PART',cascade=>false,DEGREE =>4);

パーティションごとの件数を確認

select
    TABLE_OWNER
    ,TABLE_NAME
    ,PARTITION_NAME
    ,NUM_ROWS
from
    ALL_TAB_PARTITIONS
where table_name='PARTTEST_EE_PART'
order by
    TABLE_NAME;
SQL> select
  2      TABLE_OWNER
  3      ,TABLE_NAME
  4      ,PARTITION_NAME
  5      ,NUM_ROWS
  6  from
  7      ALL_TAB_PARTITIONS
  8  where table_name='PARTTEST_EE_PART'
  9  order by
 10      TABLE_NAME;
   TABLE_OWNER          TABLE_NAME    PARTITION_NAME    NUM_ROWS
______________ ___________________ _________________ ___________
TESTPART       PARTTEST_EE_PART    YMD_P00                     0
TESTPART       PARTTEST_EE_PART    YMD_P01              12830976
TESTPART       PARTTEST_EE_PART    YMD_P02              12804736
TESTPART       PARTTEST_EE_PART    YMD_P03              12837760
TESTPART       PARTTEST_EE_PART    YMD_P04              12809088
TESTPART       PARTTEST_EE_PART    YMD_P05              12786176
TESTPART       PARTTEST_EE_PART    YMD_P06              12755840
TESTPART       PARTTEST_EE_PART    YMD_P07              12817408
TESTPART       PARTTEST_EE_PART    YMD_P08              12797184
TESTPART       PARTTEST_EE_PART    YMD_P09              12803072
TESTPART       PARTTEST_EE_PART    YMD_P10              12757760
TESTPART       PARTTEST_EE_PART    YMD_P11                     0

この環境で下記SQLをパーティションありなし、索引ありなしで時間を計測。2年分に跨るデータの件数を確認。

exec rdsadmin.rdsadmin_util.flush_shared_pool;
exec rdsadmin.rdsadmin_util.flush_buffer_cache;
set autotrace on
set timing on
select count(*) from PARTTEST_EE_PART where ymd between to_date('2017/05/01 11:00:00','YYYY/MM/DD HH24:MI:SS') and to_date('2019/05/11 12:00:00','YYYY/MM/DD HH24:MI:SS');

実行結果

SQL> select count(*) from PARTTEST_EE_PART where ymd between to_date('2017/05/01 11:00:00','YYYY/MM/DD HH24:MI:SS') and to_date('2019/05/11 12:00:00','YYYY/MM/DD HH24:MI:SS');
   COUNT(*)
___________
   25941120


Explain Plan
-----------------------------------------------------------
                                                                                                PLAN_TABLE_OUTPUT
_________________________________________________________________________________________________________________
Plan hash value: 2195020283

--------------------------------------------------------------------------------------------------------------
| Id  | Operation                 | Name             | Rows  | Bytes | Cost (%CPU)| Time     | Pstart| Pstop |
--------------------------------------------------------------------------------------------------------------
|   0 | SELECT STATEMENT          |                  |     1 |     8 |   192K  (1)| 00:00:08 |       |       |
|   1 |  SORT AGGREGATE           |                  |     1 |     8 |            |          |       |       |
|   2 |   PARTITION RANGE ITERATOR|                  |    26M|   198M|   192K  (1)| 00:00:08 |     9 |    11 |
|*  3 |    TABLE ACCESS FULL      | PARTTEST_EE_PART |    26M|   198M|   192K  (1)| 00:00:08 |     9 |    11 |
--------------------------------------------------------------------------------------------------------------

Predicate Information (identified by operation id):
---------------------------------------------------

   3 - filter("YMD">=TO_DATE(' 2017-05-01 11:00:00', 'syyyy-mm-dd hh24:mi:ss') AND "YMD"<=TO_DATE('
              2019-05-11 12:00:00', 'syyyy-mm-dd hh24:mi:ss'))


Statistics
-----------------------------------------------------------
             249  CPU used by this session
             250  CPU used when call started
             865  DB time
               3  Requests to/from client
              10  enqueue releases
              10  enqueue requests
            5028  non-idle wait count
             621  non-idle wait time
             200  opened cursors cumulative
               1  opened cursors current
            5567  physical read total IO requests
            5504  physical read total multi block requests
               1  pinned cursors current
               9  process last non-idle time
             460  recursive calls
               2  recursive cpu usage
          701356  session logical reads
             621  user I/O wait time
               4  user calls
Elapsed: 00:00:08.748
SQL>

非パーティション表を作成して、データを同一とする

CREATE TABLE PARTTEST_EE_NONPART(
  id number,
  ymd DATE,
  str1 VARCHAR(120),
  str2 VARCHAR(500),
  str3 VARCHAR2(10),
  str4 NUMBER(9,0)
);

insert into PARTTEST_EE_NONPART NOLOGGING select * from PARTTEST_EE_PART;
select count(*) from PARTTEST_EE_PART;

時間を計測

exec rdsadmin.rdsadmin_util.flush_shared_pool;
exec rdsadmin.rdsadmin_util.flush_buffer_cache;
set autotrace on
set timing on
select count(*) from PARTTEST_EE_NONPART where ymd between to_date('2017/05/01 11:00:00','YYYY/MM/DD HH24:MI:SS') and to_date('2019/05/11 12:00:00','YYYY/MM/DD HH24:MI:SS');
SQL> select count(*) from PARTTEST_EE_NONPART where ymd between to_date('2017/05/01 11:00:00','YYYY/MM/DD HH24:MI:SS') and to_date('2019/05/11 12:00:00','YYYY/MM/DD HH24:MI:SS');
   COUNT(*)
___________
   25941120


Explain Plan
-----------------------------------------------------------
                                                                            PLAN_TABLE_OUTPUT
_____________________________________________________________________________________________
Plan hash value: 3084685461

------------------------------------------------------------------------------------------
| Id  | Operation          | Name                | Rows  | Bytes | Cost (%CPU)| Time     |
------------------------------------------------------------------------------------------
|   0 | SELECT STATEMENT   |                     |     1 |     8 |   635K  (1)| 00:00:25 |
|   1 |  SORT AGGREGATE    |                     |     1 |     8 |            |          |
|*  2 |   TABLE ACCESS FULL| PARTTEST_EE_NONPART |    26M|   198M|   635K  (1)| 00:00:25 |
------------------------------------------------------------------------------------------

Predicate Information (identified by operation id):
---------------------------------------------------

   2 - filter("YMD">=TO_DATE(' 2017-05-01 11:00:00', 'syyyy-mm-dd hh24:mi:ss')
              AND "YMD"<=TO_DATE(' 2019-05-11 12:00:00', 'syyyy-mm-dd hh24:mi:ss'))


Statistics
-----------------------------------------------------------
            1077  CPU used by this session
            1078  CPU used when call started
            3105  DB time
               3  Requests to/from client
               5  enqueue releases
               5  enqueue requests
           15184  non-idle wait count
            2045  non-idle wait time
              42  opened cursors cumulative
               1  opened cursors current
           18335  physical read total IO requests
           18288  physical read total multi block requests
               1  pinned cursors current
              31  process last non-idle time
             115  recursive calls
         4667336  session logical reads
            2045  user I/O wait time
               4  user calls
Elapsed: 00:00:31.136

索引作成

drop index PARTTEST_EE_PART_IDX;
create index PARTTEST_EE_PART_IDX ON PARTTEST_EE_PART(ymd) local nologging parallel 4;

実行結果

SQL> set autotrace on
Autotrace Enabled
Shows the execution plan as well as statistics of the statement.
SQL> set timing on
SQL> select count(*) from PARTTEST_EE_PART where ymd between to_date('2017/05/01 11:00:00','YYYY/MM/DD HH24:MI:SS') and to_date('2019/05/11 12:00:00','YYYY/MM/DD HH24:MI:SS');
   COUNT(*)
___________
   25941120


Explain Plan
-----------------------------------------------------------
                                                                                                                                       PLAN_TABLE_OUTPUT
________________________________________________________________________________________________________________________________________________________
Plan hash value: 2795901320

-----------------------------------------------------------------------------------------------------------------------------------------------------
| Id  | Operation                       | Name                 | Rows  | Bytes | Cost (%CPU)| Time     | Pstart| Pstop |    TQ  |IN-OUT| PQ Distrib |
-----------------------------------------------------------------------------------------------------------------------------------------------------
|   0 | SELECT STATEMENT                |                      |     1 |     8 | 69179   (1)| 00:00:03 |       |       |        |      |            |
|   1 |  SORT AGGREGATE                 |                      |     1 |     8 |            |          |       |       |        |      |            |
|   2 |   PX COORDINATOR                |                      |       |       |            |          |       |       |        |      |            |
|   3 |    PX SEND QC (RANDOM)          | :TQ10000             |     1 |     8 |            |          |       |       |  Q1,00 | P->S | QC (RAND)  |
|   4 |     SORT AGGREGATE              |                      |     1 |     8 |            |          |       |       |  Q1,00 | PCWP |            |
|   5 |      PX PARTITION RANGE ITERATOR|                      |    26M|   198M| 69179   (1)| 00:00:03 |     9 |    11 |  Q1,00 | PCWC |            |
|*  6 |       INDEX RANGE SCAN          | PARTTEST_EE_PART_IDX |    26M|   198M| 69179   (1)| 00:00:03 |     9 |    11 |  Q1,00 | PCWP |            |
-----------------------------------------------------------------------------------------------------------------------------------------------------

Predicate Information (identified by operation id):
---------------------------------------------------

   6 - access("YMD">=TO_DATE(' 2017-05-01 11:00:00', 'syyyy-mm-dd hh24:mi:ss') AND "YMD"<=TO_DATE(' 2019-05-11 12:00:00', 'syyyy-mm-dd
              hh24:mi:ss'))


Statistics
-----------------------------------------------------------
             277  CPU used by this session
               3  CPU used when call started
            3654  DB time
               3  Requests to/from client
               6  enqueue conversions
              18  enqueue releases
              21  enqueue requests
            1770  in call idle wait time
               3  messages sent
           68920  non-idle wait count
            1704  non-idle wait time
             318  opened cursors cumulative
               1  opened cursors current
           68894  physical read total IO requests
               1  pinned cursors current
               9  process last non-idle time
             779  recursive calls
             277  recursive cpu usage
           69883  session logical reads
            1703  user I/O wait time
              16  user calls
Elapsed: 00:00:09.506
drop index PARTTEST_EE_NONPART_IDX;
create index PARTTEST_EE_NONPART_IDX ON PARTTEST_EE_NONPART(ymd) nologging parallel 4;

実行結果

SQL> select count(*) from PARTTEST_EE_NONPART where ymd between to_date('2017/05/01 11:00:00','YYYY/MM/DD HH24:MI:SS') and to_date('2019/05/11 12:00:00','YYYY/MM/DD HH24:MI:SS');
   COUNT(*)
___________
   25941120


Explain Plan
-----------------------------------------------------------
                                                                               PLAN_TABLE_OUTPUT
________________________________________________________________________________________________
Plan hash value: 1281488453

---------------------------------------------------------------------------------------------
| Id  | Operation         | Name                    | Rows  | Bytes | Cost (%CPU)| Time     |
---------------------------------------------------------------------------------------------
|   0 | SELECT STATEMENT  |                         |     1 |     9 | 76083   (1)| 00:00:03 |
|   1 |  SORT AGGREGATE   |                         |     1 |     9 |            |          |
|*  2 |   INDEX RANGE SCAN| PARTTEST_EE_NONPART_IDX |    33M|   290M| 76083   (1)| 00:00:03 |
---------------------------------------------------------------------------------------------

Predicate Information (identified by operation id):
---------------------------------------------------

   2 - access("YMD">=TO_DATE(' 2017-05-01 11:00:00', 'syyyy-mm-dd hh24:mi:ss') AND
              "YMD"<=TO_DATE(' 2019-05-11 12:00:00', 'syyyy-mm-dd hh24:mi:ss'))

Note
-----
   - dynamic statistics used: dynamic sampling (level=2)


Statistics
-----------------------------------------------------------
             236  CPU used by this session
             237  CPU used when call started
            2182  DB time
               3  Requests to/from client
               5  enqueue releases
               5  enqueue requests
           68838  non-idle wait count
            2030  non-idle wait time
              25  opened cursors cumulative
               1  opened cursors current
           68834  physical read total IO requests
               1  pinned cursors current
              22  process last non-idle time
              82  recursive calls
               1  recursive cpu usage
           68890  session logical reads
            2030  user I/O wait time
               4  user calls
Elapsed: 00:00:21.901

結果

パーティションあり パーティションなし
索引あり 9.506 21.901
索引なし 8.748 31.136
疑似パーティションを使用

環境作成からスタート

疑似パーティションのイメージ(再掲)

パーティション表のイメージ

下記のようなパーティションを作りたい。(これを作るわけではない)

CREATE TABLE PARTTEST_EE_PART(
  id number,
  ymd DATE,
  str1 VARCHAR(120),
  str2 VARCHAR(500),
  str3 VARCHAR2(10),
  str4 NUMBER(9,0)
)
PARTITION BY RANGE(ymd)
(
  PARTITION ymd_p00 VALUES LESS THAN(TO_DATE('2010/01/01','YYYY/MM/DD')),
  PARTITION ymd_p01 VALUES LESS THAN(TO_DATE('2011/01/01','YYYY/MM/DD')),
  PARTITION ymd_p02 VALUES LESS THAN(TO_DATE('2012/01/01','YYYY/MM/DD')),
  PARTITION ymd_p03 VALUES LESS THAN(TO_DATE('2013/01/01','YYYY/MM/DD')),
  PARTITION ymd_p04 VALUES LESS THAN(TO_DATE('2014/01/01','YYYY/MM/DD')),
  PARTITION ymd_p05 VALUES LESS THAN(TO_DATE('2015/01/01','YYYY/MM/DD')),
  PARTITION ymd_p06 VALUES LESS THAN(TO_DATE('2016/01/01','YYYY/MM/DD')),
  PARTITION ymd_p07 VALUES LESS THAN(TO_DATE('2017/01/01','YYYY/MM/DD')),
  PARTITION ymd_p08 VALUES LESS THAN(TO_DATE('2018/01/01','YYYY/MM/DD')),
  PARTITION ymd_p09 VALUES LESS THAN(TO_DATE('2019/01/01','YYYY/MM/DD')),
  PARTITION ymd_p10 VALUES LESS THAN(TO_DATE('2020/01/01','YYYY/MM/DD')),
  PARTITION ymd_p11 VALUES LESS THAN(TO_DATE('2021/01/01','YYYY/MM/DD'))
);

表で対比する場合は下記の通り。

パーティション名 テーブル
ymd_p00 PARTTEST_SE_PART_1
ymd_p01 PARTTEST_SE_PART_2
ymd_p02 PARTTEST_SE_PART_3
ymd_p03 PARTTEST_SE_PART_4
ymd_p04 PARTTEST_SE_PART_5
ymd_p05 PARTTEST_SE_PART_6
ymd_p06 PARTTEST_SE_PART_7
ymd_p07 PARTTEST_SE_PART_8
ymd_p08 PARTTEST_SE_PART_9
ymd_p09 PARTTEST_SE_PART_10
ymd_p10 PARTTEST_SE_PART_11
ymd_p11 PARTTEST_SE_PART_12
テーブル作成(=疑似パーティションテーブル郡)
-- Partition like table 1
CREATE TABLE PARTTEST_SE_PART_1
(
  id number,
  ymd DATE,
  str1 VARCHAR(120),
  str2 VARCHAR(500),
  str3 VARCHAR2(10),
  str4 NUMBER(9,0)
);

-- Partition like table 2
CREATE TABLE PARTTEST_SE_PART_2
(
  id number,
  ymd DATE,
  str1 VARCHAR(120),
  str2 VARCHAR(500),
  str3 VARCHAR2(10),
  str4 NUMBER(9,0)
);

-- Partition like table 3
CREATE TABLE PARTTEST_SE_PART_3
(
  id number,
  ymd DATE,
  str1 VARCHAR(120),
  str2 VARCHAR(500),
  str3 VARCHAR2(10),
  str4 NUMBER(9,0)
);

-- Partition like table 4
CREATE TABLE PARTTEST_SE_PART_4
(
  id number,
  ymd DATE,
  str1 VARCHAR(120),
  str2 VARCHAR(500),
  str3 VARCHAR2(10),
  str4 NUMBER(9,0)
);

-- Partition like table 5
CREATE TABLE PARTTEST_SE_PART_5
(
  id number,
  ymd DATE,
  str1 VARCHAR(120),
  str2 VARCHAR(500),
  str3 VARCHAR2(10),
  str4 NUMBER(9,0)
);

-- Partition like table 6
CREATE TABLE PARTTEST_SE_PART_6
(
  id number,
  ymd DATE,
  str1 VARCHAR(120),
  str2 VARCHAR(500),
  str3 VARCHAR2(10),
  str4 NUMBER(9,0)
);

-- Partition like table 7
CREATE TABLE PARTTEST_SE_PART_7
(
  id number,
  ymd DATE,
  str1 VARCHAR(120),
  str2 VARCHAR(500),
  str3 VARCHAR2(10),
  str4 NUMBER(9,0)
);

-- Partition like table 8
CREATE TABLE PARTTEST_SE_PART_8
(
  id number,
  ymd DATE,
  str1 VARCHAR(120),
  str2 VARCHAR(500),
  str3 VARCHAR2(10),
  str4 NUMBER(9,0)
);


-- Partition like table 9
CREATE TABLE PARTTEST_SE_PART_9
(
  id number,
  ymd DATE,
  str1 VARCHAR(120),
  str2 VARCHAR(500),
  str3 VARCHAR2(10),
  str4 NUMBER(9,0)
);

-- Partition like table 10
CREATE TABLE PARTTEST_SE_PART_10
(
  id number,
  ymd DATE,
  str1 VARCHAR(120),
  str2 VARCHAR(500),
  str3 VARCHAR2(10),
  str4 NUMBER(9,0)
);

-- Partition like table 11
CREATE TABLE PARTTEST_SE_PART_11
(
  id number,
  ymd DATE,
  str1 VARCHAR(120),
  str2 VARCHAR(500),
  str3 VARCHAR2(10),
  str4 NUMBER(9,0)
);

-- Partition like table 12
CREATE TABLE PARTTEST_SE_PART_12
(
  id number,
  ymd DATE,
  str1 VARCHAR(120),
  str2 VARCHAR(500),
  str3 VARCHAR2(10),
  str4 NUMBER(9,0)
);
ビューを作成
CREATE VIEW PARTTEST_SE_PART AS
SELECT * FROM PARTTEST_SE_PART_1 UNION ALL
SELECT * FROM PARTTEST_SE_PART_2 UNION ALL
SELECT * FROM PARTTEST_SE_PART_3 UNION ALL
SELECT * FROM PARTTEST_SE_PART_4 UNION ALL
SELECT * FROM PARTTEST_SE_PART_5 UNION ALL
SELECT * FROM PARTTEST_SE_PART_6 UNION ALL
SELECT * FROM PARTTEST_SE_PART_7 UNION ALL
SELECT * FROM PARTTEST_SE_PART_8 UNION ALL
SELECT * FROM PARTTEST_SE_PART_9 UNION ALL
SELECT * FROM PARTTEST_SE_PART_10 UNION ALL
SELECT * FROM PARTTEST_SE_PART_11 UNION ALL
SELECT * FROM PARTTEST_SE_PART_12
/
INSERT用のトリガーを作成

今回はINSERT用のトリガーしか作っていないが、DELETEやUPDATEも入って来る場合はDMLに応じたトリガーが必要。今回は擬似的にレンジパーティションに作っているが、疑似リストパーティション、おそらく疑似ハッシュパーティションも出来るはず。

CREATE OR REPLACE TRIGGER PARTTEST_SE_PART_INSERT
INSTEAD OF INSERT
ON PARTTEST_SE_PART
FOR EACH ROW

DECLARE
n_part date;

BEGIN
  n_part := :NEW.ymd;
  IF n_part between to_date('2009/01/01','YYYY/MM/DD') and to_date('2010/01/01','YYYY/MM/DD') THEN
    insert into PARTTEST_SE_PART_1 values(:new.id,:new.ymd,:new.str1,:new.str2,:new.str3,:new.str4);
  ELSIF n_part between to_date('2010/01/01','YYYY/MM/DD') and to_date('2010/12/31','YYYY/MM/DD') THEN
    insert into PARTTEST_SE_PART_2 values(:new.id,:new.ymd,:new.str1,:new.str2,:new.str3,:new.str4);
  ELSIF n_part between to_date('2011/01/01','YYYY/MM/DD') and to_date('2011/12/31','YYYY/MM/DD') THEN
    insert into PARTTEST_SE_PART_3 values(:new.id,:new.ymd,:new.str1,:new.str2,:new.str3,:new.str4);
  ELSIF n_part between to_date('2012/01/01','YYYY/MM/DD') and to_date('2012/12/31','YYYY/MM/DD') THEN
    insert into PARTTEST_SE_PART_4 values(:new.id,:new.ymd,:new.str1,:new.str2,:new.str3,:new.str4);
  ELSIF n_part between to_date('2013/01/01','YYYY/MM/DD') and to_date('2013/12/31','YYYY/MM/DD') THEN
    insert into PARTTEST_SE_PART_5 values(:new.id,:new.ymd,:new.str1,:new.str2,:new.str3,:new.str4);
  ELSIF n_part between to_date('2014/01/01','YYYY/MM/DD') and to_date('2014/12/31','YYYY/MM/DD') THEN
    insert into PARTTEST_SE_PART_6 values(:new.id,:new.ymd,:new.str1,:new.str2,:new.str3,:new.str4);
  ELSIF n_part between to_date('2015/01/01','YYYY/MM/DD') and to_date('2015/12/31','YYYY/MM/DD') THEN
    insert into PARTTEST_SE_PART_7 values(:new.id,:new.ymd,:new.str1,:new.str2,:new.str3,:new.str4);
  ELSIF n_part between to_date('2016/01/01','YYYY/MM/DD') and to_date('2016/12/31','YYYY/MM/DD') THEN
    insert into PARTTEST_SE_PART_8 values(:new.id,:new.ymd,:new.str1,:new.str2,:new.str3,:new.str4);
  ELSIF n_part between to_date('2017/01/01','YYYY/MM/DD') and to_date('2017/12/31','YYYY/MM/DD') THEN
    insert into PARTTEST_SE_PART_9 values(:new.id,:new.ymd,:new.str1,:new.str2,:new.str3,:new.str4);
  ELSIF n_part between to_date('2018/01/01','YYYY/MM/DD') and to_date('2018/12/31','YYYY/MM/DD') THEN
    insert into PARTTEST_SE_PART_10 values(:new.id,:new.ymd,:new.str1,:new.str2,:new.str3,:new.str4);
  ELSIF n_part between to_date('2019/01/01','YYYY/MM/DD') and to_date('2019/12/31','YYYY/MM/DD') THEN
    insert into PARTTEST_SE_PART_11 values(:new.id,:new.ymd,:new.str1,:new.str2,:new.str3,:new.str4);
  ELSIF n_part between to_date('2020/01/01','YYYY/MM/DD') and to_date('2020/12/31','YYYY/MM/DD') THEN
    insert into PARTTEST_SE_PART_12 values(:new.id,:new.ymd,:new.str1,:new.str2,:new.str3,:new.str4);
 END IF;
END;
/
INSERTテスト

試しに1件だけビューに対してINSERTを実施してみる。

insert into PARTTEST_SE_PART values(1,TO_DATE('2012/01/01','YYYY/MM/DD'),DBMS_RANDOM.STRING('X', 50),'あああああ','AAAA',1);
SQL> insert into PARTTEST_SE_PART values(1,TO_DATE('2012/01/01','YYYY/MM/DD'),DBMS_RANDOM.STRING('X', 50),'あああああ','AAAA',1);

1 row inserted.

Elapsed: 00:00:00.092
SQL> commit;

Commit complete.

Elapsed: 00:00:00.004
SQL> select * from PARTTEST_SE_PART;
   ID          YMD                                                  STR1     STR2    STR3    STR4
_____ ____________ _____________________________________________________ ________ _______ _______
    1 01-JAN-12    XDB01K5LVWKZC5KH5XRRV6Z2UAGU40I3U06ZPQ1H0JV5H7RGEC    あああああ    AAAA          1


Elapsed: 00:00:00.113
SQL>
ビューとテーブルの件数を確認
select 'PARTTEST_SE_PART',count(*) rowcount from PARTTEST_SE_PART
union all
select 'PARTTEST_SE_PART_1',count(*) rowcount from PARTTEST_SE_PART_1
union all
select 'PARTTEST_SE_PART_2',count(*) rowcount from PARTTEST_SE_PART_2
union all
select 'PARTTEST_SE_PART_3',count(*) rowcount from PARTTEST_SE_PART_3
union all
select 'PARTTEST_SE_PART_4',count(*) rowcount from PARTTEST_SE_PART_4
union all
select 'PARTTEST_SE_PART_5',count(*) rowcount from PARTTEST_SE_PART_5
union all
select 'PARTTEST_SE_PART_6',count(*) rowcount from PARTTEST_SE_PART_6
union all
select 'PARTTEST_SE_PART_7',count(*) rowcount from PARTTEST_SE_PART_7
union all
select 'PARTTEST_SE_PART_8',count(*) rowcount from PARTTEST_SE_PART_8
union all
select 'PARTTEST_SE_PART_9',count(*) rowcount from PARTTEST_SE_PART_9
union all
select 'PARTTEST_SE_PART_10',count(*) rowcount from PARTTEST_SE_PART_10
union all
select 'PARTTEST_SE_PART_11',count(*) rowcount from PARTTEST_SE_PART_11
union all
select 'PARTTEST_SE_PART_12',count(*) rowcount from PARTTEST_SE_PART_12
;

正常にパーティションテーブルに入っていることを確認

    'PARTTEST_SE_PART'    ROWCOUNT
______________________ ___________
PARTTEST_SE_PART                 1
PARTTEST_SE_PART_1               0
PARTTEST_SE_PART_2               0
PARTTEST_SE_PART_3               0
PARTTEST_SE_PART_4               1
PARTTEST_SE_PART_5               0
PARTTEST_SE_PART_6               0
PARTTEST_SE_PART_7               0
PARTTEST_SE_PART_8               0
PARTTEST_SE_PART_9               0
PARTTEST_SE_PART_10              0
PARTTEST_SE_PART_11              0
PARTTEST_SE_PART_12              0

13 rows selected.
データ作成

前半で検証したパーティションテーブルからデータを抽出する

insert into /*+ PARALLEL (4)) */ PARTTEST_SE_PART_1 NOLLOGING SELECT * FROM PARTTEST_EE_PART PARTITION(ymd_p00);
insert into /*+ PARALLEL (4)) */ PARTTEST_SE_PART_2 NOLLOGING SELECT * FROM PARTTEST_EE_PART PARTITION(ymd_p01);
insert into /*+ PARALLEL (4)) */ PARTTEST_SE_PART_3 NOLLOGING SELECT * FROM PARTTEST_EE_PART PARTITION(ymd_p02);
insert into /*+ PARALLEL (4)) */ PARTTEST_SE_PART_4 NOLLOGING SELECT * FROM PARTTEST_EE_PART PARTITION(ymd_p03);
insert into /*+ PARALLEL (4)) */ PARTTEST_SE_PART_5 NOLLOGING SELECT * FROM PARTTEST_EE_PART PARTITION(ymd_p04);
insert into /*+ PARALLEL (4)) */ PARTTEST_SE_PART_6 NOLLOGING SELECT * FROM PARTTEST_EE_PART PARTITION(ymd_p05);
insert into /*+ PARALLEL (4)) */ PARTTEST_SE_PART_7 NOLLOGING SELECT * FROM PARTTEST_EE_PART PARTITION(ymd_p06);
insert into /*+ PARALLEL (4)) */ PARTTEST_SE_PART_8 NOLLOGING SELECT * FROM PARTTEST_EE_PART PARTITION(ymd_p07);
insert into /*+ PARALLEL (4)) */ PARTTEST_SE_PART_9 NOLLOGING SELECT * FROM PARTTEST_EE_PART PARTITION(ymd_p08);
insert into /*+ PARALLEL (4)) */ PARTTEST_SE_PART_10 NOLLOGING SELECT * FROM PARTTEST_EE_PART PARTITION(ymd_p09);
insert into /*+ PARALLEL (4)) */ PARTTEST_SE_PART_11 NOLLOGING SELECT * FROM PARTTEST_EE_PART PARTITION(ymd_p10);
insert into /*+ PARALLEL (4)) */ PARTTEST_SE_PART_12 NOLLOGING SELECT * FROM PARTTEST_EE_PART PARTITION(ymd_p11);
commit;
データ件数の確認
select 'PARTTEST_SE_PART',count(*) rowcount from PARTTBL_MAIN
union all
select 'PARTTEST_SE_PART_1',count(*) rowcount from PARTTEST_SE_PART_1
union all
select 'PARTTEST_SE_PART_2',count(*) rowcount from PARTTEST_SE_PART_2
union all
select 'PARTTEST_SE_PART_3',count(*) rowcount from PARTTEST_SE_PART_3
union all
select 'PARTTEST_SE_PART_4',count(*) rowcount from PARTTEST_SE_PART_4
union all
select 'PARTTEST_SE_PART_5',count(*) rowcount from PARTTEST_SE_PART_5
union all
select 'PARTTEST_SE_PART_6',count(*) rowcount from PARTTEST_SE_PART_6
union all
select 'PARTTEST_SE_PART_7',count(*) rowcount from PARTTEST_SE_PART_7
union all
select 'PARTTEST_SE_PART_8',count(*) rowcount from PARTTEST_SE_PART_8
union all
select 'PARTTEST_SE_PART_9',count(*) rowcount from PARTTEST_SE_PART_9
union all
select 'PARTTEST_SE_PART_10',count(*) rowcount from PARTTEST_SE_PART_10
union all
select 'PARTTEST_SE_PART_11',count(*) rowcount from PARTTEST_SE_PART_11
union all
select 'PARTTEST_SE_PART_12',count(*) rowcount from PARTTEST_SE_PART_12
;

簡易性能検証

一つの疑似パーティションに約3000万件のデータで全体で1億2万件のデータが可能されている。

SQL> select 'PARTTEST_SE_PART',count(*) rowcount from PARTTBL_MAIN
  2  union all
  3  select 'PARTTEST_SE_PART_1',count(*) rowcount from PARTTEST_SE_PART_1
  4  union all
  5  select 'PARTTEST_SE_PART_2',count(*) rowcount from PARTTEST_SE_PART_2
  6  union all
  7  select 'PARTTEST_SE_PART_3',count(*) rowcount from PARTTEST_SE_PART_3
  8  union all
  9  select 'PARTTEST_SE_PART_4',count(*) rowcount from PARTTEST_SE_PART_4
 10  union all
 11  select 'PARTTEST_SE_PART_5',count(*) rowcount from PARTTEST_SE_PART_5
 12  union all
 13  select 'PARTTEST_SE_PART_6',count(*) rowcount from PARTTEST_SE_PART_6
 14  union all
 15  select 'PARTTEST_SE_PART_7',count(*) rowcount from PARTTEST_SE_PART_7
 16  union all
 17  select 'PARTTEST_SE_PART_8',count(*) rowcount from PARTTEST_SE_PART_8
 18  union all
 19  select 'PARTTEST_SE_PART_9',count(*) rowcount from PARTTEST_SE_PART_9
 20  union all
 21  select 'PARTTEST_SE_PART_10',count(*) rowcount from PARTTEST_SE_PART_10
 22  union all
 23  select 'PARTTEST_SE_PART_11',count(*) rowcount from PARTTEST_SE_PART_11
 24  union all
 25  select 'PARTTEST_SE_PART_12',count(*) rowcount from PARTTEST_SE_PART_12
 26  ;
    'PARTTEST_SE_PART'      ROWCOUNT
______________________ _____________
PARTTEST_SE_PART          2017394688
PARTTEST_SE_PART_1                 0
PARTTEST_SE_PART_2          12830976
PARTTEST_SE_PART_3          12804736
PARTTEST_SE_PART_4          12837760
PARTTEST_SE_PART_5          12809088
PARTTEST_SE_PART_6          12786176
PARTTEST_SE_PART_7          12755840
PARTTEST_SE_PART_8          12817408
PARTTEST_SE_PART_9          12797184
PARTTEST_SE_PART_10         12803072
PARTTEST_SE_PART_11         12757760
PARTTEST_SE_PART_12                0


13 rows selected.

SQL>

パーティション表でも疑似パーティションでもない普通のテーブルを作成

drop table PARTTEST_SE_NONPART;
CREATE TABLE PARTTEST_SE_NONPART
(
  id number,
  ymd DATE,
  str1 VARCHAR(120),
  str2 VARCHAR(500),
  str3 VARCHAR2(10),
  str4 NUMBER(9,0)
);
insert into /*+ PARALLEL (4)) */ PARTTEST_SE_NONPART NOLOGGING select * from PARTTEST_SE_PART;
疑似パーティション有り、索引無しパターン

ここから実際に簡易的な性能検証を実施してみる。

exec rdsadmin.rdsadmin_util.flush_shared_pool;
exec rdsadmin.rdsadmin_util.flush_buffer_cache;
set autotrace on
set timing on
set pages 2000 lin 2000
select count(*) from PARTTEST_SE_PART where ymd between to_date('2017/05/01 11:00:00','YYYY/MM/DD HH24:MI:SS') and to_date('2019/05/11 12:00:00','YYYY/MM/DD HH24:MI:SS');

実行結果

SQL> select count(*) from PARTTEST_SE_PART where ymd between to_date('2017/05/01 11:00:00','YYYY/MM/DD HH24:MI:SS') and to_date('2019/05/11 12:00:00','YYYY/MM/DD HH24:MI:SS');
   COUNT(*)
___________
   25941120


Explain Plan
-----------------------------------------------------------
                                                                              PLAN_TABLE_OUTPUT
_______________________________________________________________________________________________
Plan hash value: 2206839629

--------------------------------------------------------------------------------------------
| Id  | Operation            | Name                | Rows  | Bytes | Cost (%CPU)| Time     |
--------------------------------------------------------------------------------------------
|   0 | SELECT STATEMENT     |                     |     1 |     9 |   642K  (1)| 00:00:26 |
|   1 |  SORT AGGREGATE      |                     |     1 |     9 |            |          |
|   2 |   VIEW               | PARTTEST_SE_PART    |    27M|   239M|   642K  (1)| 00:00:26 |
|   3 |    UNION-ALL         |                     |       |       |            |          |
|*  4 |     TABLE ACCESS FULL| PARTTEST_SE_PART_1  |     1 |     9 |     2   (0)| 00:00:01 |
|*  5 |     TABLE ACCESS FULL| PARTTEST_SE_PART_2  |  2606 | 23454 | 64292   (1)| 00:00:03 |
|*  6 |     TABLE ACCESS FULL| PARTTEST_SE_PART_3  |  2606 | 23454 | 64298   (1)| 00:00:03 |
|*  7 |     TABLE ACCESS FULL| PARTTEST_SE_PART_4  |  2606 | 23454 | 64280   (1)| 00:00:03 |
|*  8 |     TABLE ACCESS FULL| PARTTEST_SE_PART_5  |  2606 | 23454 | 64293   (1)| 00:00:03 |
|*  9 |     TABLE ACCESS FULL| PARTTEST_SE_PART_6  |  2606 | 23454 | 64298   (1)| 00:00:03 |
|* 10 |     TABLE ACCESS FULL| PARTTEST_SE_PART_7  |  2606 | 23454 | 64269   (1)| 00:00:03 |
|* 11 |     TABLE ACCESS FULL| PARTTEST_SE_PART_8  |  2606 | 23454 | 64273   (1)| 00:00:03 |
|* 12 |     TABLE ACCESS FULL| PARTTEST_SE_PART_9  |  9594K|    82M| 64294   (1)| 00:00:03 |
|* 13 |     TABLE ACCESS FULL| PARTTEST_SE_PART_10 |    13M|   113M| 64287   (1)| 00:00:03 |
|* 14 |     TABLE ACCESS FULL| PARTTEST_SE_PART_11 |  5094K|    43M| 64294   (1)| 00:00:03 |
|* 15 |     TABLE ACCESS FULL| PARTTEST_SE_PART_12 |     1 |     9 |     2   (0)| 00:00:01 |
--------------------------------------------------------------------------------------------

Predicate Information (identified by operation id):
---------------------------------------------------

   4 - filter("YMD">=TO_DATE(' 2017-05-01 11:00:00', 'syyyy-mm-dd hh24:mi:ss') AND
              "YMD"<=TO_DATE(' 2019-05-11 12:00:00', 'syyyy-mm-dd hh24:mi:ss'))
   5 - filter("YMD">=TO_DATE(' 2017-05-01 11:00:00', 'syyyy-mm-dd hh24:mi:ss') AND
              "YMD"<=TO_DATE(' 2019-05-11 12:00:00', 'syyyy-mm-dd hh24:mi:ss'))
   6 - filter("YMD">=TO_DATE(' 2017-05-01 11:00:00', 'syyyy-mm-dd hh24:mi:ss') AND
              "YMD"<=TO_DATE(' 2019-05-11 12:00:00', 'syyyy-mm-dd hh24:mi:ss'))
   7 - filter("YMD">=TO_DATE(' 2017-05-01 11:00:00', 'syyyy-mm-dd hh24:mi:ss') AND
              "YMD"<=TO_DATE(' 2019-05-11 12:00:00', 'syyyy-mm-dd hh24:mi:ss'))
   8 - filter("YMD">=TO_DATE(' 2017-05-01 11:00:00', 'syyyy-mm-dd hh24:mi:ss') AND
              "YMD"<=TO_DATE(' 2019-05-11 12:00:00', 'syyyy-mm-dd hh24:mi:ss'))
   9 - filter("YMD">=TO_DATE(' 2017-05-01 11:00:00', 'syyyy-mm-dd hh24:mi:ss') AND
              "YMD"<=TO_DATE(' 2019-05-11 12:00:00', 'syyyy-mm-dd hh24:mi:ss'))
  10 - filter("YMD">=TO_DATE(' 2017-05-01 11:00:00', 'syyyy-mm-dd hh24:mi:ss') AND
              "YMD"<=TO_DATE(' 2019-05-11 12:00:00', 'syyyy-mm-dd hh24:mi:ss'))
  11 - filter("YMD">=TO_DATE(' 2017-05-01 11:00:00', 'syyyy-mm-dd hh24:mi:ss') AND
              "YMD"<=TO_DATE(' 2019-05-11 12:00:00', 'syyyy-mm-dd hh24:mi:ss'))
  12 - filter("YMD">=TO_DATE(' 2017-05-01 11:00:00', 'syyyy-mm-dd hh24:mi:ss') AND
              "YMD"<=TO_DATE(' 2019-05-11 12:00:00', 'syyyy-mm-dd hh24:mi:ss'))
  13 - filter("YMD">=TO_DATE(' 2017-05-01 11:00:00', 'syyyy-mm-dd hh24:mi:ss') AND
              "YMD"<=TO_DATE(' 2019-05-11 12:00:00', 'syyyy-mm-dd hh24:mi:ss'))
  14 - filter("YMD">=TO_DATE(' 2017-05-01 11:00:00', 'syyyy-mm-dd hh24:mi:ss') AND
              "YMD"<=TO_DATE(' 2019-05-11 12:00:00', 'syyyy-mm-dd hh24:mi:ss'))
  15 - filter("YMD">=TO_DATE(' 2017-05-01 11:00:00', 'syyyy-mm-dd hh24:mi:ss') AND
              "YMD"<=TO_DATE(' 2019-05-11 12:00:00', 'syyyy-mm-dd hh24:mi:ss'))

Note
-----
   - dynamic statistics used: dynamic sampling (level=2)


Statistics
-----------------------------------------------------------
            1600  CPU used by this session
            1601  CPU used when call started
            3853  DB time
              42  Requests to/from client
              30  enqueue releases
              30  enqueue requests
           19833  non-idle wait count
            2523  non-idle wait time
             210  opened cursors cumulative
               1  opened cursors current
           19782  physical read total IO requests
           18766  physical read total multi block requests
              38  process last non-idle time
             444  recursive calls
               8  recursive cpu usage
         2340871  session logical reads
            2524  user I/O wait time
              43  user calls
Elapsed: 00:00:39.026
SQL>
疑似パーティション無し、索引無しパターン
exec rdsadmin.rdsadmin_util.flush_shared_pool;
exec rdsadmin.rdsadmin_util.flush_buffer_cache;
set autotrace on
set timing on
set pages 2000 lin 2000
select count(*) from PARTTEST_SE_NONPART where ymd between to_date('2017/05/01 11:00:00','YYYY/MM/DD HH24:MI:SS') and to_date('2019/05/11 12:00:00','YYYY/MM/DD HH24:MI:SS');

実行結果

SQL> set timing on
SQL> set pages 2000 lin 2000
SQL> select count(*) from PARTTEST_SE_NONPART where ymd between to_date('2017/05/01 11:00:00','YYYY/MM/DD HH24:MI:SS') and to_date('2019/05/11 12:00:00','YYYY/MM/DD HH24:MI:SS');
   COUNT(*)
___________
   25941120


Explain Plan
-----------------------------------------------------------
                                                                            PLAN_TABLE_OUTPUT
_____________________________________________________________________________________________
Plan hash value: 145121306

------------------------------------------------------------------------------------------
| Id  | Operation          | Name                | Rows  | Bytes | Cost (%CPU)| Time     |
------------------------------------------------------------------------------------------
|   0 | SELECT STATEMENT   |                     |     1 |     9 |   635K  (1)| 00:00:25 |
|   1 |  SORT AGGREGATE    |                     |     1 |     9 |            |          |
|*  2 |   TABLE ACCESS FULL| PARTTEST_SE_NONPART |    36M|   314M|   635K  (1)| 00:00:25 |
------------------------------------------------------------------------------------------

Predicate Information (identified by operation id):
---------------------------------------------------

   2 - filter("YMD">=TO_DATE(' 2017-05-01 11:00:00', 'syyyy-mm-dd hh24:mi:ss')
              AND "YMD"<=TO_DATE(' 2019-05-11 12:00:00', 'syyyy-mm-dd hh24:mi:ss'))

Note
-----
   - dynamic statistics used: dynamic sampling (level=2)


Statistics
-----------------------------------------------------------
             818  CPU used by this session
             819  CPU used when call started
            3118  DB time
               3  Requests to/from client
               4  enqueue conversions
              13  enqueue releases
              13  enqueue requests
               1  enqueue waits
           15903  non-idle wait count
            2319  non-idle wait time
              50  opened cursors cumulative
               1  opened cursors current
           21147  physical read total IO requests
           18288  physical read total multi block requests
               1  pinned cursors current
              32  process last non-idle time
             142  recursive calls
               7  recursive cpu usage
         2339571  session logical reads
            2319  user I/O wait time
               4  user calls
Elapsed: 00:00:31.506
SQL>
索引を使用

ローカル索引のように各疑似パーティションテーブルに索引を付ける。


create index PARTTEST_SE_PART_1_IDX ON PARTTEST_SE_PART_1(ymd) nologging parallel 4;
create index PARTTEST_SE_PART_2_IDX ON PARTTEST_SE_PART_2(ymd) nologging parallel 4;
create index PARTTEST_SE_PART_3_IDX ON PARTTEST_SE_PART_3(ymd) nologging parallel 4;
create index PARTTEST_SE_PART_4_IDX ON PARTTEST_SE_PART_4(ymd) nologging parallel 4;
create index PARTTEST_SE_PART_5_IDX ON PARTTEST_SE_PART_5(ymd) nologging parallel 4;
create index PARTTEST_SE_PART_6_IDX ON PARTTEST_SE_PART_6(ymd) nologging parallel 4;
create index PARTTEST_SE_PART_7_IDX ON PARTTEST_SE_PART_7(ymd) nologging parallel 4;
create index PARTTEST_SE_PART_8_IDX ON PARTTEST_SE_PART_8(ymd) nologging parallel 4;
create index PARTTEST_SE_PART_9_IDX ON PARTTEST_SE_PART_9(ymd) nologging parallel 4;
create index PARTTEST_SE_PART_10_IDX ON PARTTEST_SE_PART_10(ymd) nologging parallel 4;
create index PARTTEST_SE_PART_11_IDX ON PARTTEST_SE_PART_11(ymd) nologging parallel 4;
create index PARTTEST_SE_PART_12_IDX ON PARTTEST_SE_PART_12(ymd) nologging parallel 4;

create index PARTTEST_SE_NONPART_IDX ON PARTTEST_SE_NONPART(ymd) nologging parallel 4;
exec rdsadmin.rdsadmin_util.flush_shared_pool;
exec rdsadmin.rdsadmin_util.flush_buffer_cache;
set autotrace on
set timing on
set pages 2000 lin 2000
select count(*) from PARTTEST_SE_PART where ymd between to_date('2017/05/01 11:00:00','YYYY/MM/DD HH24:MI:SS') and to_date('2019/05/11 12:00:00','YYYY/MM/DD HH24:MI:SS');
SQL> select count(*) from PARTTEST_SE_PART where ymd between to_date('2017/05/01 11:00:00','YYYY/MM/DD HH24:MI:SS') and to_date('2019/05/11 12:00:00','YYYY/MM/DD HH24:MI:SS');
   COUNT(*)
___________
   25941120


Explain Plan
-----------------------------------------------------------
                                                                                                                      PLAN_TABLE_OUTPUT
_______________________________________________________________________________________________________________________________________
Plan hash value: 1340602939

------------------------------------------------------------------------------------------------------------------------------------
| Id  | Operation                   | Name                    | Rows  | Bytes | Cost (%CPU)| Time     |    TQ  |IN-OUT| PQ Distrib |
------------------------------------------------------------------------------------------------------------------------------------
|   0 | SELECT STATEMENT            |                         |     1 |     9 | 28333   (1)| 00:00:02 |        |      |            |
|   1 |  SORT AGGREGATE             |                         |     1 |     9 |            |          |        |      |            |
|   2 |   PX COORDINATOR            |                         |       |       |            |          |        |      |            |
|   3 |    PX SEND QC (RANDOM)      | :TQ10000                |     1 |     9 |            |          |  Q1,00 | P->S | QC (RAND)  |
|   4 |     SORT AGGREGATE          |                         |     1 |     9 |            |          |  Q1,00 | PCWP |            |
|   5 |      VIEW                   | PARTTEST_SE_PART        |    27M|   239M| 28333   (1)| 00:00:02 |  Q1,00 | PCWP |            |
|   6 |       UNION-ALL             |                         |       |       |            |          |  Q1,00 | PCWP |            |
|   7 |        PX SELECTOR          |                         |       |       |            |          |  Q1,00 | PCWP |            |
|*  8 |         INDEX RANGE SCAN    | PARTTEST_SE_PART_1_IDX  |     1 |     9 |     0   (0)| 00:00:01 |  Q1,00 | PCWP |            |
|   9 |        PX SELECTOR          |                         |       |       |            |          |  Q1,00 | PCWP |            |
|* 10 |         INDEX RANGE SCAN    | PARTTEST_SE_PART_2_IDX  |     1 |     9 |     2   (0)| 00:00:01 |  Q1,00 | PCWP |            |
|  11 |        PX SELECTOR          |                         |       |       |            |          |  Q1,00 | PCWP |            |
|* 12 |         INDEX RANGE SCAN    | PARTTEST_SE_PART_3_IDX  |     1 |     9 |     2   (0)| 00:00:01 |  Q1,00 | PCWP |            |
|  13 |        PX SELECTOR          |                         |       |       |            |          |  Q1,00 | PCWP |            |
|* 14 |         INDEX RANGE SCAN    | PARTTEST_SE_PART_4_IDX  |     1 |     9 |     2   (0)| 00:00:01 |  Q1,00 | PCWP |            |
|  15 |        PX SELECTOR          |                         |       |       |            |          |  Q1,00 | PCWP |            |
|* 16 |         INDEX RANGE SCAN    | PARTTEST_SE_PART_5_IDX  |     1 |     9 |     2   (0)| 00:00:01 |  Q1,00 | PCWP |            |
|  17 |        PX SELECTOR          |                         |       |       |            |          |  Q1,00 | PCWP |            |
|* 18 |         INDEX RANGE SCAN    | PARTTEST_SE_PART_6_IDX  |     1 |     9 |     2   (0)| 00:00:01 |  Q1,00 | PCWP |            |
|  19 |        PX SELECTOR          |                         |       |       |            |          |  Q1,00 | PCWP |            |
|* 20 |         INDEX RANGE SCAN    | PARTTEST_SE_PART_7_IDX  |     1 |     9 |     2   (0)| 00:00:01 |  Q1,00 | PCWP |            |
|  21 |        PX SELECTOR          |                         |       |       |            |          |  Q1,00 | PCWP |            |
|* 22 |         INDEX RANGE SCAN    | PARTTEST_SE_PART_8_IDX  |     1 |     9 |     2   (0)| 00:00:01 |  Q1,00 | PCWP |            |
|  23 |        PX BLOCK ITERATOR    |                         |  9594K|    82M|  9447   (1)| 00:00:01 |  Q1,00 | PCWC |            |
|* 24 |         INDEX FAST FULL SCAN| PARTTEST_SE_PART_9_IDX  |  9594K|    82M|  9447   (1)| 00:00:01 |  Q1,00 | PCWP |            |
|  25 |        PX BLOCK ITERATOR    |                         |    13M|   113M|  9452   (1)| 00:00:01 |  Q1,00 | PCWC |            |
|* 26 |         INDEX FAST FULL SCAN| PARTTEST_SE_PART_10_IDX |    13M|   113M|  9452   (1)| 00:00:01 |  Q1,00 | PCWP |            |
|  27 |        PX BLOCK ITERATOR    |                         |  5094K|    43M|  9419   (1)| 00:00:01 |  Q1,00 | PCWC |            |
|* 28 |         INDEX FAST FULL SCAN| PARTTEST_SE_PART_11_IDX |  5094K|    43M|  9419   (1)| 00:00:01 |  Q1,00 | PCWP |            |
|  29 |        PX SELECTOR          |                         |       |       |            |          |  Q1,00 | PCWP |            |
|* 30 |         INDEX RANGE SCAN    | PARTTEST_SE_PART_12_IDX |     1 |     9 |     0   (0)| 00:00:01 |  Q1,00 | PCWP |            |
------------------------------------------------------------------------------------------------------------------------------------

Predicate Information (identified by operation id):
---------------------------------------------------

   8 - access("YMD">=TO_DATE(' 2017-05-01 11:00:00', 'syyyy-mm-dd hh24:mi:ss') AND "YMD"<=TO_DATE(' 2019-05-11 12:00:00',
              'syyyy-mm-dd hh24:mi:ss'))
  10 - access("YMD">=TO_DATE(' 2017-05-01 11:00:00', 'syyyy-mm-dd hh24:mi:ss') AND "YMD"<=TO_DATE(' 2019-05-11 12:00:00',
              'syyyy-mm-dd hh24:mi:ss'))
  12 - access("YMD">=TO_DATE(' 2017-05-01 11:00:00', 'syyyy-mm-dd hh24:mi:ss') AND "YMD"<=TO_DATE(' 2019-05-11 12:00:00',
              'syyyy-mm-dd hh24:mi:ss'))
  14 - access("YMD">=TO_DATE(' 2017-05-01 11:00:00', 'syyyy-mm-dd hh24:mi:ss') AND "YMD"<=TO_DATE(' 2019-05-11 12:00:00',
              'syyyy-mm-dd hh24:mi:ss'))
  16 - access("YMD">=TO_DATE(' 2017-05-01 11:00:00', 'syyyy-mm-dd hh24:mi:ss') AND "YMD"<=TO_DATE(' 2019-05-11 12:00:00',
              'syyyy-mm-dd hh24:mi:ss'))
  18 - access("YMD">=TO_DATE(' 2017-05-01 11:00:00', 'syyyy-mm-dd hh24:mi:ss') AND "YMD"<=TO_DATE(' 2019-05-11 12:00:00',
              'syyyy-mm-dd hh24:mi:ss'))
  20 - access("YMD">=TO_DATE(' 2017-05-01 11:00:00', 'syyyy-mm-dd hh24:mi:ss') AND "YMD"<=TO_DATE(' 2019-05-11 12:00:00',
              'syyyy-mm-dd hh24:mi:ss'))
  22 - access("YMD">=TO_DATE(' 2017-05-01 11:00:00', 'syyyy-mm-dd hh24:mi:ss') AND "YMD"<=TO_DATE(' 2019-05-11 12:00:00',
              'syyyy-mm-dd hh24:mi:ss'))
  24 - filter("YMD">=TO_DATE(' 2017-05-01 11:00:00', 'syyyy-mm-dd hh24:mi:ss') AND "YMD"<=TO_DATE(' 2019-05-11 12:00:00',
              'syyyy-mm-dd hh24:mi:ss'))
  26 - filter("YMD">=TO_DATE(' 2017-05-01 11:00:00', 'syyyy-mm-dd hh24:mi:ss') AND "YMD"<=TO_DATE(' 2019-05-11 12:00:00',
              'syyyy-mm-dd hh24:mi:ss'))
  28 - filter("YMD">=TO_DATE(' 2017-05-01 11:00:00', 'syyyy-mm-dd hh24:mi:ss') AND "YMD"<=TO_DATE(' 2019-05-11 12:00:00',
              'syyyy-mm-dd hh24:mi:ss'))
  30 - access("YMD">=TO_DATE(' 2017-05-01 11:00:00', 'syyyy-mm-dd hh24:mi:ss') AND "YMD"<=TO_DATE(' 2019-05-11 12:00:00',
              'syyyy-mm-dd hh24:mi:ss'))

Note
-----
   - dynamic statistics used: dynamic sampling (level=2)


Statistics
-----------------------------------------------------------
             472  CPU used by this session
               6  CPU used when call started
             709  DB time
               3  Requests to/from client
               8  enqueue conversions
              50  enqueue releases
              54  enqueue requests
             148  in call idle wait time
               2  messages sent
            1320  non-idle wait count
              93  non-idle wait time
             273  opened cursors cumulative
               1  opened cursors current
            1290  physical read total IO requests
             922  physical read total multi block requests
               1  pinned cursors current
               2  process last non-idle time
             557  recursive calls
             471  recursive cpu usage
          113998  session logical reads
              93  user I/O wait time
              20  user calls
Elapsed: 00:00:01.856
exec rdsadmin.rdsadmin_util.flush_shared_pool;
exec rdsadmin.rdsadmin_util.flush_buffer_cache;
set autotrace on
set timing on
set pages 2000 lin 2000
select count(*) from PARTTEST_SE_NONPART where ymd between to_date('2017/05/01 11:00:00','YYYY/MM/DD HH24:MI:SS') and to_date('2019/05/11 12:00:00','YYYY/MM/DD HH24:MI:SS');
SQL> select count(*) from PARTTEST_SE_NONPART where ymd between to_date('2017/05/01 11:00:00','YYYY/MM/DD HH24:MI:SS') and to_date('2019/05/11 12:00:00','YYYY/MM/DD HH24:MI:SS');
   COUNT(*)
___________
   25941120


Explain Plan
-----------------------------------------------------------
                                                                                                                    PLAN_TABLE_OUTPUT
_____________________________________________________________________________________________________________________________________
Plan hash value: 2697818807

----------------------------------------------------------------------------------------------------------------------------------
| Id  | Operation                 | Name                    | Rows  | Bytes | Cost (%CPU)| Time     |    TQ  |IN-OUT| PQ Distrib |
----------------------------------------------------------------------------------------------------------------------------------
|   0 | SELECT STATEMENT          |                         |     1 |     9 | 93390   (1)| 00:00:04 |        |      |            |
|   1 |  SORT AGGREGATE           |                         |     1 |     9 |            |          |        |      |            |
|   2 |   PX COORDINATOR          |                         |       |       |            |          |        |      |            |
|   3 |    PX SEND QC (RANDOM)    | :TQ10000                |     1 |     9 |            |          |  Q1,00 | P->S | QC (RAND)  |
|   4 |     SORT AGGREGATE        |                         |     1 |     9 |            |          |  Q1,00 | PCWP |            |
|   5 |      PX BLOCK ITERATOR    |                         |    36M|   314M| 93390   (1)| 00:00:04 |  Q1,00 | PCWC |            |
|*  6 |       INDEX FAST FULL SCAN| PARTTEST_SE_NONPART_IDX |    36M|   314M| 93390   (1)| 00:00:04 |  Q1,00 | PCWP |            |
----------------------------------------------------------------------------------------------------------------------------------

Predicate Information (identified by operation id):
---------------------------------------------------

   6 - filter("YMD">=TO_DATE(' 2017-05-01 11:00:00', 'syyyy-mm-dd hh24:mi:ss') AND "YMD"<=TO_DATE(' 2019-05-11 12:00:00',
              'syyyy-mm-dd hh24:mi:ss'))

Note
-----
   - dynamic statistics used: dynamic sampling (level=2)


Statistics
-----------------------------------------------------------
             867  CPU used by this session
               2  CPU used when call started
            1853  DB time
               3  Requests to/from client
               8  enqueue conversions
              16  enqueue releases
              20  enqueue requests
               1  enqueue waits
             404  in call idle wait time
               2  messages sent
            1261  non-idle wait count
             577  non-idle wait time
              49  opened cursors cumulative
               1  opened cursors current
            2774  physical read total IO requests
            2711  physical read total multi block requests
               1  pinned cursors current
               4  process last non-idle time
             136  recursive calls
             866  recursive cpu usage
          344724  session logical reads
             576  user I/O wait time
              20  user calls
Elapsed: 00:00:04.011

結果

疑似パーティション有り、索引有りパターンの場合はインデックスを使うことで高速に検索が可能だった。Predicate Informationを見れば分かる通り、インデックスを使ってAccess predicateになって不要な表を高速に処理している。(=読み込んでいるブロック数が少ない)Predicate Informationaccessfilterの違いは次の通り。accessとは、データに「アクセス」するために何かを使用していることを意味する。つまり、関連するデータにのみ「アクセス」する。filterとは、必要以上のデータを取得し、取得後にフィルタリングする。フィルタはすべての行に適用され、フィルタを通過した行のみが送信される。

(あと、疑似パーティションなし/索引ありのパターンにおいて、オプティマイザの気持ちになれず、INDEX FAST FULL SCANが走っている理由がパッと思いつかなかった。)

疑似パーティションあり 疑似パーティションなし
索引あり 1.856 4.011
索引なし 39.026 31.506

全体的な結果

今回のケースではパーティション構成と疑似パーティションで大きな違いが見られないどころか、疑似パーティションありの方がインデックスを使うことにより高速に処理出来た。ざっくりと疑似パーティション構成の動作や設定方法を理解出来たので一旦、検証メモとしては以上。運用面でどうするか、他の検索時にはどうなるか等検討は必要になるかと思う。

取得データ量やオプティマイザの実行計画次第で大きく性能値は変更されうるので一概に判断はしないが、運用面の検討も含めてPoCを経てパーティションオプションをどうするかを決めれば良いと感じた。

パーティションあり パーティションなし
索引あり 9.506 21.901
索引なし 8.748 31.136
疑似パーティションあり 疑似パーティションなし
索引あり 1.856 4.011
索引なし 39.026 31.506
---

関連しているかもしれない記事


#Oracle #EE #SE2 #RDS
