As a follow-up to the considerations in the article below, I tried implementing an alternative to Oracle Partition.

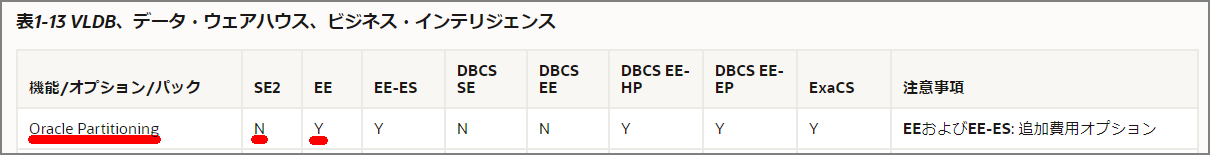

Notes on Considering a Downgrade from Oracle Enterprise Edition to Standard Edition | my opinion is my own https://zatoima.github.io/oracle-ee-se2-migration-to-aws-rds-for-oracle.html
Partitioning is commonly used for large tables and historical data, but when considering a downgrade from Oracle EE to SE2, the Partition option cannot be used, so an alternative is needed.
There are several reasons to use partitioning, and the following are the typical benefits:
- Performance improvement through partition pruning
- Performance improvement through parallelism at the partition level
- Effective when searching across multiple partitions
- Operational improvement through the ability to drop at the partition level
- Without this capability, a DELETE statement must be issued, which is difficult in terms of both I/O and time
After some research, I found several alternative approaches, so this article implements those alternatives. The references I consulted are below. In this article, I call this approach “pseudo partitioning.”
Implementing table partitioning in Oracle Standard Edition: Part 1 | AWS Database Blog https://aws.amazon.com/jp/blogs/database/implementing-table-partitioning-in-oracle-standard-edition-part-1/
Partitioning and Oracle Standard Edition | Oracle FAQ https://www.orafaq.com/node/2992
Oracle Partitioning and Standard Edition | the gruffdba https://gruffdba.wordpress.com/2018/08/05/oracle-partitioning-and-standard-edition/
Oracle SE partition using INSERT TRIGGER and VIEW - kenken0807_DB Memo https://kenken0807.hatenablog.com/entry/2015/07/21/161333
Conceptual Diagram of the Partition Alternative
As shown in the diagram below, this is an alternative using Triggers and Views. This approach was used in Oracle before Partitioning was implemented (Oracle 7 era?), and PostgreSQL before version 9.6 used inheritance and triggers, which is similar to this conceptual diagram.
When increasing the number of pseudo partition table groups, modifications to Table, View definitions, and Triggers are required, so whether this is operationally acceptable needs to be verified separately.
The key points are as follows (imagining range partitioning here):
- Prepare multiple tables, each containing data divided by year/month units
- The target table for SELECT and DML (INSERT, UPDATE, DELETE) operations is a VIEW
- The VIEW is defined by joining each table with UNION ALL
- When DML (INSERT in this case) arrives, the Trigger fires, determines which partition (table) the target year/month belongs to using IF/CASE statements, and inserts into the appropriate table
- Since indexes cannot be added to a VIEW, only local indexes are available. (= Global indexes that could be used with partitions cannot be added)
- Create local indexes on the partition key
Workflow
In trying this approach, I primarily wanted to compare performance between the source environment (EE partition table configuration) and the target environment (pseudo partition configuration), so I proceeded as follows:
-
Using EE partition tables
- Create a large-capacity table and perform simple performance verification using EE’s partition feature
- Verify with and without partitions, with and without indexes
-
Using pseudo partitions
-
The environment setup is the same as
1. Using EE partition tables. The partition portion is replaced with pseudo partition configuration -
Verify with and without pseudo partitions, with and without indexes
-
Using EE Partition Tables
Starting from environment creation
User Creation
drop user TESTPART;
create user TESTPART identified by oracle;
grant dba to TESTPART;
conn testpart/oracle@rdsoraclev19c.xxxx.ap-northeast-1.rds.amazonaws.com:1521/ora19c
-
Pattern: With Partition, Without Index
Create the partition table
CREATE TABLE PARTTEST_EE_PART(
id number,
ymd DATE,
str1 VARCHAR(120),
str2 VARCHAR(500),
str3 VARCHAR2(10),
str4 NUMBER(9,0)
)
PARTITION BY RANGE(ymd)
(
PARTITION ymd_p00 VALUES LESS THAN(TO_DATE('2010/01/01','YYYY/MM/DD')),
PARTITION ymd_p01 VALUES LESS THAN(TO_DATE('2011/01/01','YYYY/MM/DD')),
PARTITION ymd_p02 VALUES LESS THAN(TO_DATE('2012/01/01','YYYY/MM/DD')),
PARTITION ymd_p03 VALUES LESS THAN(TO_DATE('2013/01/01','YYYY/MM/DD')),
PARTITION ymd_p04 VALUES LESS THAN(TO_DATE('2014/01/01','YYYY/MM/DD')),
PARTITION ymd_p05 VALUES LESS THAN(TO_DATE('2015/01/01','YYYY/MM/DD')),
PARTITION ymd_p06 VALUES LESS THAN(TO_DATE('2016/01/01','YYYY/MM/DD')),
PARTITION ymd_p07 VALUES LESS THAN(TO_DATE('2017/01/01','YYYY/MM/DD')),
PARTITION ymd_p08 VALUES LESS THAN(TO_DATE('2018/01/01','YYYY/MM/DD')),
PARTITION ymd_p09 VALUES LESS THAN(TO_DATE('2019/01/01','YYYY/MM/DD')),
PARTITION ymd_p10 VALUES LESS THAN(TO_DATE('2020/01/01','YYYY/MM/DD')),
PARTITION ymd_p11 VALUES LESS THAN(TO_DATE('2021/01/01','YYYY/MM/DD'))
);
Create 1 million rows of data
INSERT /*+ APPEND */ INTO PARTTEST_EE_PART NOLOGGING
SELECT
parttest_seq.nextval,
TO_DATE('20100101','YYYYMMDD') +MOD(ABS(DBMS_RANDOM.RANDOM()),TO_DATE('20200101','YYYYMMDD')-TO_DATE('20100101','YYYYMMDD')) DT
,DBMS_RANDOM.STRING('X', 50)
,'あいうえおかきくけこさしすせそ'
,TO_CHAR(ABS(DBMS_RANDOM.RANDOM()),'FM0000000000') CD
,MOD(DBMS_RANDOM.RANDOM(),100000) KIN
FROM
(SELECT 0 FROM ALL_CATALOG WHERE ROWNUM <= 1000)
,(SELECT 0 FROM ALL_CATALOG WHERE ROWNUM <= 1000);
commit;
Amplify data using Insert ~ Select (many times)
insert into PARTTEST_EE_PART NOLOGGING select * from PARTTEST_EE_PART;
commit;
select count(*) from PARTTEST_EE_PART;
Approximately 100 million+ rows
SQL> select count(*) from PARTTEST_EE_PART;
COUNT(*)
____________
128000000
Gather statistics to check num_rows
exec DBMS_STATS.GATHER_TABLE_STATS(ownname=>'TESTPART',tabname=>'PARTTEST_EE_PART',cascade=>false,DEGREE =>4);
Check row counts per partition
select
TABLE_OWNER
,TABLE_NAME
,PARTITION_NAME
,NUM_ROWS
from
ALL_TAB_PARTITIONS
where table_name='PARTTEST_EE_PART'
order by
TABLE_NAME;
SQL> select
2 TABLE_OWNER
3 ,TABLE_NAME
4 ,PARTITION_NAME
5 ,NUM_ROWS
6 from
7 ALL_TAB_PARTITIONS
8 where table_name='PARTTEST_EE_PART'
9 order by
10 TABLE_NAME;
TABLE_OWNER TABLE_NAME PARTITION_NAME NUM_ROWS
______________ ___________________ _________________ ___________
TESTPART PARTTEST_EE_PART YMD_P00 0
TESTPART PARTTEST_EE_PART YMD_P01 12830976
TESTPART PARTTEST_EE_PART YMD_P02 12804736
TESTPART PARTTEST_EE_PART YMD_P03 12837760
TESTPART PARTTEST_EE_PART YMD_P04 12809088
TESTPART PARTTEST_EE_PART YMD_P05 12786176
TESTPART PARTTEST_EE_PART YMD_P06 12755840
TESTPART PARTTEST_EE_PART YMD_P07 12817408
TESTPART PARTTEST_EE_PART YMD_P08 12797184
TESTPART PARTTEST_EE_PART YMD_P09 12803072
TESTPART PARTTEST_EE_PART YMD_P10 12757760
TESTPART PARTTEST_EE_PART YMD_P11 0
Measure query time with and without partitions, with and without indexes in this environment. Checking the count of data spanning 2 years.
exec rdsadmin.rdsadmin_util.flush_shared_pool;
exec rdsadmin.rdsadmin_util.flush_buffer_cache;
set autotrace on
set timing on
select count(*) from PARTTEST_EE_PART where ymd between to_date('2017/05/01 11:00:00','YYYY/MM/DD HH24:MI:SS') and to_date('2019/05/11 12:00:00','YYYY/MM/DD HH24:MI:SS');
Execution result
SQL> select count(*) from PARTTEST_EE_PART where ymd between to_date('2017/05/01 11:00:00','YYYY/MM/DD HH24:MI:SS') and to_date('2019/05/11 12:00:00','YYYY/MM/DD HH24:MI:SS');
COUNT(*)
___________
25941120
Explain Plan
-----------------------------------------------------------
PLAN_TABLE_OUTPUT
_________________________________________________________________________________________________________________
Plan hash value: 2195020283
--------------------------------------------------------------------------------------------------------------
| Id | Operation | Name | Rows | Bytes | Cost (%CPU)| Time | Pstart| Pstop |
--------------------------------------------------------------------------------------------------------------
| 0 | SELECT STATEMENT | | 1 | 8 | 192K (1)| 00:00:08 | | |
| 1 | SORT AGGREGATE | | 1 | 8 | | | | |
| 2 | PARTITION RANGE ITERATOR| | 26M| 198M| 192K (1)| 00:00:08 | 9 | 11 |
|* 3 | TABLE ACCESS FULL | PARTTEST_EE_PART | 26M| 198M| 192K (1)| 00:00:08 | 9 | 11 |
--------------------------------------------------------------------------------------------------------------
Predicate Information (identified by operation id):
---------------------------------------------------
3 - filter("YMD">=TO_DATE(' 2017-05-01 11:00:00', 'syyyy-mm-dd hh24:mi:ss') AND "YMD"<=TO_DATE('
2019-05-11 12:00:00', 'syyyy-mm-dd hh24:mi:ss'))
Statistics
-----------------------------------------------------------
249 CPU used by this session
250 CPU used when call started
865 DB time
3 Requests to/from client
10 enqueue releases
10 enqueue requests
5028 non-idle wait count
621 non-idle wait time
200 opened cursors cumulative
1 opened cursors current
5567 physical read total IO requests
5504 physical read total multi block requests
1 pinned cursors current
9 process last non-idle time
460 recursive calls
2 recursive cpu usage
701356 session logical reads
621 user I/O wait time
4 user calls
Elapsed: 00:00:08.748
SQL>
-
Pattern: Without Partition, Without Index
Create a non-partitioned table and use the same data
CREATE TABLE PARTTEST_EE_NONPART(
id number,
ymd DATE,
str1 VARCHAR(120),
str2 VARCHAR(500),
str3 VARCHAR2(10),
str4 NUMBER(9,0)
);
insert into PARTTEST_EE_NONPART NOLOGGING select * from PARTTEST_EE_PART;
select count(*) from PARTTEST_EE_PART;
Measure time
exec rdsadmin.rdsadmin_util.flush_shared_pool;
exec rdsadmin.rdsadmin_util.flush_buffer_cache;
set autotrace on
set timing on
select count(*) from PARTTEST_EE_NONPART where ymd between to_date('2017/05/01 11:00:00','YYYY/MM/DD HH24:MI:SS') and to_date('2019/05/11 12:00:00','YYYY/MM/DD HH24:MI:SS');
SQL> select count(*) from PARTTEST_EE_NONPART where ymd between to_date('2017/05/01 11:00:00','YYYY/MM/DD HH24:MI:SS') and to_date('2019/05/11 12:00:00','YYYY/MM/DD HH24:MI:SS');
COUNT(*)
___________
25941120
Explain Plan
-----------------------------------------------------------
PLAN_TABLE_OUTPUT
_____________________________________________________________________________________________
Plan hash value: 3084685461
------------------------------------------------------------------------------------------
| Id | Operation | Name | Rows | Bytes | Cost (%CPU)| Time |
------------------------------------------------------------------------------------------
| 0 | SELECT STATEMENT | | 1 | 8 | 635K (1)| 00:00:25 |
| 1 | SORT AGGREGATE | | 1 | 8 | | |
|* 2 | TABLE ACCESS FULL| PARTTEST_EE_NONPART | 26M| 198M| 635K (1)| 00:00:25 |
------------------------------------------------------------------------------------------
Predicate Information (identified by operation id):
---------------------------------------------------
2 - filter("YMD">=TO_DATE(' 2017-05-01 11:00:00', 'syyyy-mm-dd hh24:mi:ss')
AND "YMD"<=TO_DATE(' 2019-05-11 12:00:00', 'syyyy-mm-dd hh24:mi:ss'))
Statistics
-----------------------------------------------------------
1077 CPU used by this session
1078 CPU used when call started
3105 DB time
3 Requests to/from client
5 enqueue releases
5 enqueue requests
15184 non-idle wait count
2045 non-idle wait time
42 opened cursors cumulative
1 opened cursors current
18335 physical read total IO requests
18288 physical read total multi block requests
1 pinned cursors current
31 process last non-idle time
115 recursive calls
4667336 session logical reads
2045 user I/O wait time
4 user calls
Elapsed: 00:00:31.136
-
Pattern: With Partition, With Index
Create index
drop index PARTTEST_EE_PART_IDX;
create index PARTTEST_EE_PART_IDX ON PARTTEST_EE_PART(ymd) local nologging parallel 4;
Execution result
SQL> set autotrace on
Autotrace Enabled
Shows the execution plan as well as statistics of the statement.
SQL> set timing on
SQL> select count(*) from PARTTEST_EE_PART where ymd between to_date('2017/05/01 11:00:00','YYYY/MM/DD HH24:MI:SS') and to_date('2019/05/11 12:00:00','YYYY/MM/DD HH24:MI:SS');
COUNT(*)
___________
25941120
Explain Plan
-----------------------------------------------------------
PLAN_TABLE_OUTPUT
________________________________________________________________________________________________________________________________________________________
Plan hash value: 2795901320
-----------------------------------------------------------------------------------------------------------------------------------------------------
| Id | Operation | Name | Rows | Bytes | Cost (%CPU)| Time | Pstart| Pstop | TQ |IN-OUT| PQ Distrib |
-----------------------------------------------------------------------------------------------------------------------------------------------------
| 0 | SELECT STATEMENT | | 1 | 8 | 69179 (1)| 00:00:03 | | | | | |
| 1 | SORT AGGREGATE | | 1 | 8 | | | | | | | |
| 2 | PX COORDINATOR | | | | | | | | | | |
| 3 | PX SEND QC (RANDOM) | :TQ10000 | 1 | 8 | | | | | Q1,00 | P->S | QC (RAND) |
| 4 | SORT AGGREGATE | | 1 | 8 | | | | | Q1,00 | PCWP | |
| 5 | PX PARTITION RANGE ITERATOR| | 26M| 198M| 69179 (1)| 00:00:03 | 9 | 11 | Q1,00 | PCWC | |
|* 6 | INDEX RANGE SCAN | PARTTEST_EE_PART_IDX | 26M| 198M| 69179 (1)| 00:00:03 | 9 | 11 | Q1,00 | PCWP | |
-----------------------------------------------------------------------------------------------------------------------------------------------------
Predicate Information (identified by operation id):
---------------------------------------------------
6 - access("YMD">=TO_DATE(' 2017-05-01 11:00:00', 'syyyy-mm-dd hh24:mi:ss') AND "YMD"<=TO_DATE(' 2019-05-11 12:00:00', 'syyyy-mm-dd
hh24:mi:ss'))
Statistics
-----------------------------------------------------------
277 CPU used by this session
3 CPU used when call started
3654 DB time
3 Requests to/from client
6 enqueue conversions
18 enqueue releases
21 enqueue requests
1770 in call idle wait time
3 messages sent
68920 non-idle wait count
1704 non-idle wait time
318 opened cursors cumulative
1 opened cursors current
68894 physical read total IO requests
1 pinned cursors current
9 process last non-idle time
779 recursive calls
277 recursive cpu usage
69883 session logical reads
1703 user I/O wait time
16 user calls
Elapsed: 00:00:09.506
-
Pattern: Without Partition, With Index
drop index PARTTEST_EE_NONPART_IDX;
create index PARTTEST_EE_NONPART_IDX ON PARTTEST_EE_NONPART(ymd) nologging parallel 4;
Execution result
SQL> select count(*) from PARTTEST_EE_NONPART where ymd between to_date('2017/05/01 11:00:00','YYYY/MM/DD HH24:MI:SS') and to_date('2019/05/11 12:00:00','YYYY/MM/DD HH24:MI:SS');
COUNT(*)
___________
25941120
Explain Plan
-----------------------------------------------------------
PLAN_TABLE_OUTPUT
________________________________________________________________________________________________
Plan hash value: 1281488453
---------------------------------------------------------------------------------------------
| Id | Operation | Name | Rows | Bytes | Cost (%CPU)| Time |
---------------------------------------------------------------------------------------------
| 0 | SELECT STATEMENT | | 1 | 9 | 76083 (1)| 00:00:03 |
| 1 | SORT AGGREGATE | | 1 | 9 | | |
|* 2 | INDEX RANGE SCAN| PARTTEST_EE_NONPART_IDX | 33M| 290M| 76083 (1)| 00:00:03 |
---------------------------------------------------------------------------------------------
Predicate Information (identified by operation id):
---------------------------------------------------
2 - access("YMD">=TO_DATE(' 2017-05-01 11:00:00', 'syyyy-mm-dd hh24:mi:ss') AND
"YMD"<=TO_DATE(' 2019-05-11 12:00:00', 'syyyy-mm-dd hh24:mi:ss'))
Note
-----
- dynamic statistics used: dynamic sampling (level=2)
Statistics
-----------------------------------------------------------
236 CPU used by this session
237 CPU used when call started
2182 DB time
3 Requests to/from client
5 enqueue releases
5 enqueue requests
68838 non-idle wait count
2030 non-idle wait time
25 opened cursors cumulative
1 opened cursors current
68834 physical read total IO requests
1 pinned cursors current
22 process last non-idle time
82 recursive calls
1 recursive cpu usage
68890 session logical reads
2030 user I/O wait time
4 user calls
Elapsed: 00:00:21.901
Results
| With Partition | Without Partition | |
|---|---|---|
| With Index | 9.506 | 21.901 |
| No Index | 8.748 | 31.136 |
Using Pseudo Partitions
Starting from environment creation
Pseudo Partition Concept (reprinted)
Partition Table Image
The following is the type of partition we want to create. (This is not what we will create)
CREATE TABLE PARTTEST_EE_PART(
id number,
ymd DATE,
str1 VARCHAR(120),
str2 VARCHAR(500),
str3 VARCHAR2(10),
str4 NUMBER(9,0)
)
PARTITION BY RANGE(ymd)
(
PARTITION ymd_p00 VALUES LESS THAN(TO_DATE('2010/01/01','YYYY/MM/DD')),
PARTITION ymd_p01 VALUES LESS THAN(TO_DATE('2011/01/01','YYYY/MM/DD')),
PARTITION ymd_p02 VALUES LESS THAN(TO_DATE('2012/01/01','YYYY/MM/DD')),
PARTITION ymd_p03 VALUES LESS THAN(TO_DATE('2013/01/01','YYYY/MM/DD')),
PARTITION ymd_p04 VALUES LESS THAN(TO_DATE('2014/01/01','YYYY/MM/DD')),
PARTITION ymd_p05 VALUES LESS THAN(TO_DATE('2015/01/01','YYYY/MM/DD')),
PARTITION ymd_p06 VALUES LESS THAN(TO_DATE('2016/01/01','YYYY/MM/DD')),
PARTITION ymd_p07 VALUES LESS THAN(TO_DATE('2017/01/01','YYYY/MM/DD')),
PARTITION ymd_p08 VALUES LESS THAN(TO_DATE('2018/01/01','YYYY/MM/DD')),
PARTITION ymd_p09 VALUES LESS THAN(TO_DATE('2019/01/01','YYYY/MM/DD')),
PARTITION ymd_p10 VALUES LESS THAN(TO_DATE('2020/01/01','YYYY/MM/DD')),
PARTITION ymd_p11 VALUES LESS THAN(TO_DATE('2021/01/01','YYYY/MM/DD'))
);
The table comparison is as follows:
| Partition Name | Table |
|---|---|
| ymd_p00 | PARTTEST_SE_PART_1 |
| ymd_p01 | PARTTEST_SE_PART_2 |
| ymd_p02 | PARTTEST_SE_PART_3 |
| ymd_p03 | PARTTEST_SE_PART_4 |
| ymd_p04 | PARTTEST_SE_PART_5 |
| ymd_p05 | PARTTEST_SE_PART_6 |
| ymd_p06 | PARTTEST_SE_PART_7 |
| ymd_p07 | PARTTEST_SE_PART_8 |
| ymd_p08 | PARTTEST_SE_PART_9 |
| ymd_p09 | PARTTEST_SE_PART_10 |
| ymd_p10 | PARTTEST_SE_PART_11 |
| ymd_p11 | PARTTEST_SE_PART_12 |
Create Tables (= Pseudo Partition Table Group)
-- Partition like table 1
CREATE TABLE PARTTEST_SE_PART_1
(
id number,
ymd DATE,
str1 VARCHAR(120),
str2 VARCHAR(500),
str3 VARCHAR2(10),
str4 NUMBER(9,0)
);
-- Partition like table 2
CREATE TABLE PARTTEST_SE_PART_2
(
id number,
ymd DATE,
str1 VARCHAR(120),
str2 VARCHAR(500),
str3 VARCHAR2(10),
str4 NUMBER(9,0)
);
-- Partition like table 3
CREATE TABLE PARTTEST_SE_PART_3
(
id number,
ymd DATE,
str1 VARCHAR(120),
str2 VARCHAR(500),
str3 VARCHAR2(10),
str4 NUMBER(9,0)
);
-- Partition like table 4
CREATE TABLE PARTTEST_SE_PART_4
(
id number,
ymd DATE,
str1 VARCHAR(120),
str2 VARCHAR(500),
str3 VARCHAR2(10),
str4 NUMBER(9,0)
);
-- Partition like table 5
CREATE TABLE PARTTEST_SE_PART_5
(
id number,
ymd DATE,
str1 VARCHAR(120),
str2 VARCHAR(500),
str3 VARCHAR2(10),
str4 NUMBER(9,0)
);
-- Partition like table 6
CREATE TABLE PARTTEST_SE_PART_6
(
id number,
ymd DATE,
str1 VARCHAR(120),
str2 VARCHAR(500),
str3 VARCHAR2(10),
str4 NUMBER(9,0)
);
-- Partition like table 7
CREATE TABLE PARTTEST_SE_PART_7
(
id number,
ymd DATE,
str1 VARCHAR(120),
str2 VARCHAR(500),
str3 VARCHAR2(10),
str4 NUMBER(9,0)
);
-- Partition like table 8
CREATE TABLE PARTTEST_SE_PART_8
(
id number,
ymd DATE,
str1 VARCHAR(120),
str2 VARCHAR(500),
str3 VARCHAR2(10),
str4 NUMBER(9,0)
);
-- Partition like table 9
CREATE TABLE PARTTEST_SE_PART_9
(
id number,
ymd DATE,
str1 VARCHAR(120),
str2 VARCHAR(500),
str3 VARCHAR2(10),
str4 NUMBER(9,0)
);
-- Partition like table 10
CREATE TABLE PARTTEST_SE_PART_10
(
id number,
ymd DATE,
str1 VARCHAR(120),
str2 VARCHAR(500),
str3 VARCHAR2(10),
str4 NUMBER(9,0)
);
-- Partition like table 11
CREATE TABLE PARTTEST_SE_PART_11
(
id number,
ymd DATE,
str1 VARCHAR(120),
str2 VARCHAR(500),
str3 VARCHAR2(10),
str4 NUMBER(9,0)
);
-- Partition like table 12
CREATE TABLE PARTTEST_SE_PART_12
(
id number,
ymd DATE,
str1 VARCHAR(120),
str2 VARCHAR(500),
str3 VARCHAR2(10),
str4 NUMBER(9,0)
);
Create View
CREATE VIEW PARTTEST_SE_PART AS
SELECT * FROM PARTTEST_SE_PART_1 UNION ALL
SELECT * FROM PARTTEST_SE_PART_2 UNION ALL
SELECT * FROM PARTTEST_SE_PART_3 UNION ALL
SELECT * FROM PARTTEST_SE_PART_4 UNION ALL
SELECT * FROM PARTTEST_SE_PART_5 UNION ALL
SELECT * FROM PARTTEST_SE_PART_6 UNION ALL
SELECT * FROM PARTTEST_SE_PART_7 UNION ALL
SELECT * FROM PARTTEST_SE_PART_8 UNION ALL
SELECT * FROM PARTTEST_SE_PART_9 UNION ALL
SELECT * FROM PARTTEST_SE_PART_10 UNION ALL
SELECT * FROM PARTTEST_SE_PART_11 UNION ALL
SELECT * FROM PARTTEST_SE_PART_12
/
Create INSERT Trigger
Only an INSERT trigger is created here, but if DELETE and UPDATE also arrive, triggers for each DML operation are required. This creates a pseudo range partition, but pseudo list partitions and likely pseudo hash partitions should also be possible.
CREATE OR REPLACE TRIGGER PARTTEST_SE_PART_INSERT
INSTEAD OF INSERT
ON PARTTEST_SE_PART
FOR EACH ROW
DECLARE
n_part date;
BEGIN
n_part := :NEW.ymd;
IF n_part between to_date('2009/01/01','YYYY/MM/DD') and to_date('2010/01/01','YYYY/MM/DD') THEN
insert into PARTTEST_SE_PART_1 values(:new.id,:new.ymd,:new.str1,:new.str2,:new.str3,:new.str4);
ELSIF n_part between to_date('2010/01/01','YYYY/MM/DD') and to_date('2010/12/31','YYYY/MM/DD') THEN
insert into PARTTEST_SE_PART_2 values(:new.id,:new.ymd,:new.str1,:new.str2,:new.str3,:new.str4);
ELSIF n_part between to_date('2011/01/01','YYYY/MM/DD') and to_date('2011/12/31','YYYY/MM/DD') THEN
insert into PARTTEST_SE_PART_3 values(:new.id,:new.ymd,:new.str1,:new.str2,:new.str3,:new.str4);
ELSIF n_part between to_date('2012/01/01','YYYY/MM/DD') and to_date('2012/12/31','YYYY/MM/DD') THEN
insert into PARTTEST_SE_PART_4 values(:new.id,:new.ymd,:new.str1,:new.str2,:new.str3,:new.str4);
ELSIF n_part between to_date('2013/01/01','YYYY/MM/DD') and to_date('2013/12/31','YYYY/MM/DD') THEN
insert into PARTTEST_SE_PART_5 values(:new.id,:new.ymd,:new.str1,:new.str2,:new.str3,:new.str4);
ELSIF n_part between to_date('2014/01/01','YYYY/MM/DD') and to_date('2014/12/31','YYYY/MM/DD') THEN
insert into PARTTEST_SE_PART_6 values(:new.id,:new.ymd,:new.str1,:new.str2,:new.str3,:new.str4);
ELSIF n_part between to_date('2015/01/01','YYYY/MM/DD') and to_date('2015/12/31','YYYY/MM/DD') THEN
insert into PARTTEST_SE_PART_7 values(:new.id,:new.ymd,:new.str1,:new.str2,:new.str3,:new.str4);
ELSIF n_part between to_date('2016/01/01','YYYY/MM/DD') and to_date('2016/12/31','YYYY/MM/DD') THEN
insert into PARTTEST_SE_PART_8 values(:new.id,:new.ymd,:new.str1,:new.str2,:new.str3,:new.str4);
ELSIF n_part between to_date('2017/01/01','YYYY/MM/DD') and to_date('2017/12/31','YYYY/MM/DD') THEN
insert into PARTTEST_SE_PART_9 values(:new.id,:new.ymd,:new.str1,:new.str2,:new.str3,:new.str4);
ELSIF n_part between to_date('2018/01/01','YYYY/MM/DD') and to_date('2018/12/31','YYYY/MM/DD') THEN
insert into PARTTEST_SE_PART_10 values(:new.id,:new.ymd,:new.str1,:new.str2,:new.str3,:new.str4);
ELSIF n_part between to_date('2019/01/01','YYYY/MM/DD') and to_date('2019/12/31','YYYY/MM/DD') THEN
insert into PARTTEST_SE_PART_11 values(:new.id,:new.ymd,:new.str1,:new.str2,:new.str3,:new.str4);
ELSIF n_part between to_date('2020/01/01','YYYY/MM/DD') and to_date('2020/12/31','YYYY/MM/DD') THEN
insert into PARTTEST_SE_PART_12 values(:new.id,:new.ymd,:new.str1,:new.str2,:new.str3,:new.str4);
END IF;
END;
/
INSERT Test
Try inserting a single row into the view as a test.
insert into PARTTEST_SE_PART values(1,TO_DATE('2012/01/01','YYYY/MM/DD'),DBMS_RANDOM.STRING('X', 50),'あああああ','AAAA',1);
SQL> insert into PARTTEST_SE_PART values(1,TO_DATE('2012/01/01','YYYY/MM/DD'),DBMS_RANDOM.STRING('X', 50),'あああああ','AAAA',1);
1 row inserted.
Elapsed: 00:00:00.092
SQL> commit;
Commit complete.
Elapsed: 00:00:00.004
SQL> select * from PARTTEST_SE_PART;
ID YMD STR1 STR2 STR3 STR4
_____ ____________ _____________________________________________________ ________ _______ _______
1 01-JAN-12 XDB01K5LVWKZC5KH5XRRV6Z2UAGU40I3U06ZPQ1H0JV5H7RGEC あああああ AAAA 1
Elapsed: 00:00:00.113
SQL>
Check Row Counts for View and Tables
select 'PARTTEST_SE_PART',count(*) rowcount from PARTTEST_SE_PART
union all
select 'PARTTEST_SE_PART_1',count(*) rowcount from PARTTEST_SE_PART_1
union all
select 'PARTTEST_SE_PART_2',count(*) rowcount from PARTTEST_SE_PART_2
union all
select 'PARTTEST_SE_PART_3',count(*) rowcount from PARTTEST_SE_PART_3
union all
select 'PARTTEST_SE_PART_4',count(*) rowcount from PARTTEST_SE_PART_4
union all
select 'PARTTEST_SE_PART_5',count(*) rowcount from PARTTEST_SE_PART_5
union all
select 'PARTTEST_SE_PART_6',count(*) rowcount from PARTTEST_SE_PART_6
union all
select 'PARTTEST_SE_PART_7',count(*) rowcount from PARTTEST_SE_PART_7
union all
select 'PARTTEST_SE_PART_8',count(*) rowcount from PARTTEST_SE_PART_8
union all
select 'PARTTEST_SE_PART_9',count(*) rowcount from PARTTEST_SE_PART_9
union all
select 'PARTTEST_SE_PART_10',count(*) rowcount from PARTTEST_SE_PART_10
union all
select 'PARTTEST_SE_PART_11',count(*) rowcount from PARTTEST_SE_PART_11
union all
select 'PARTTEST_SE_PART_12',count(*) rowcount from PARTTEST_SE_PART_12
;
Confirmed that data was inserted into the correct partition table
'PARTTEST_SE_PART' ROWCOUNT
______________________ ___________
PARTTEST_SE_PART 1
PARTTEST_SE_PART_1 0
PARTTEST_SE_PART_2 0
PARTTEST_SE_PART_3 0
PARTTEST_SE_PART_4 1
PARTTEST_SE_PART_5 0
PARTTEST_SE_PART_6 0
PARTTEST_SE_PART_7 0
PARTTEST_SE_PART_8 0
PARTTEST_SE_PART_9 0
PARTTEST_SE_PART_10 0
PARTTEST_SE_PART_11 0
PARTTEST_SE_PART_12 0
13 rows selected.
Load Data
Extract data from the partition table verified in the first half
insert into /*+ PARALLEL (4)) */ PARTTEST_SE_PART_1 NOLLOGING SELECT * FROM PARTTEST_EE_PART PARTITION(ymd_p00);
insert into /*+ PARALLEL (4)) */ PARTTEST_SE_PART_2 NOLLOGING SELECT * FROM PARTTEST_EE_PART PARTITION(ymd_p01);
insert into /*+ PARALLEL (4)) */ PARTTEST_SE_PART_3 NOLLOGING SELECT * FROM PARTTEST_EE_PART PARTITION(ymd_p02);
insert into /*+ PARALLEL (4)) */ PARTTEST_SE_PART_4 NOLLOGING SELECT * FROM PARTTEST_EE_PART PARTITION(ymd_p03);
insert into /*+ PARALLEL (4)) */ PARTTEST_SE_PART_5 NOLLOGING SELECT * FROM PARTTEST_EE_PART PARTITION(ymd_p04);
insert into /*+ PARALLEL (4)) */ PARTTEST_SE_PART_6 NOLLOGING SELECT * FROM PARTTEST_EE_PART PARTITION(ymd_p05);
insert into /*+ PARALLEL (4)) */ PARTTEST_SE_PART_7 NOLLOGING SELECT * FROM PARTTEST_EE_PART PARTITION(ymd_p06);
insert into /*+ PARALLEL (4)) */ PARTTEST_SE_PART_8 NOLLOGING SELECT * FROM PARTTEST_EE_PART PARTITION(ymd_p07);
insert into /*+ PARALLEL (4)) */ PARTTEST_SE_PART_9 NOLLOGING SELECT * FROM PARTTEST_EE_PART PARTITION(ymd_p08);
insert into /*+ PARALLEL (4)) */ PARTTEST_SE_PART_10 NOLLOGING SELECT * FROM PARTTEST_EE_PART PARTITION(ymd_p09);
insert into /*+ PARALLEL (4)) */ PARTTEST_SE_PART_11 NOLLOGING SELECT * FROM PARTTEST_EE_PART PARTITION(ymd_p10);
insert into /*+ PARALLEL (4)) */ PARTTEST_SE_PART_12 NOLLOGING SELECT * FROM PARTTEST_EE_PART PARTITION(ymd_p11);
commit;
Check Row Counts
select 'PARTTEST_SE_PART',count(*) rowcount from PARTTBL_MAIN
union all
select 'PARTTEST_SE_PART_1',count(*) rowcount from PARTTEST_SE_PART_1
union all
select 'PARTTEST_SE_PART_2',count(*) rowcount from PARTTEST_SE_PART_2
union all
select 'PARTTEST_SE_PART_3',count(*) rowcount from PARTTEST_SE_PART_3
union all
select 'PARTTEST_SE_PART_4',count(*) rowcount from PARTTEST_SE_PART_4
union all
select 'PARTTEST_SE_PART_5',count(*) rowcount from PARTTEST_SE_PART_5
union all
select 'PARTTEST_SE_PART_6',count(*) rowcount from PARTTEST_SE_PART_6
union all
select 'PARTTEST_SE_PART_7',count(*) rowcount from PARTTEST_SE_PART_7
union all
select 'PARTTEST_SE_PART_8',count(*) rowcount from PARTTEST_SE_PART_8
union all
select 'PARTTEST_SE_PART_9',count(*) rowcount from PARTTEST_SE_PART_9
union all
select 'PARTTEST_SE_PART_10',count(*) rowcount from PARTTEST_SE_PART_10
union all
select 'PARTTEST_SE_PART_11',count(*) rowcount from PARTTEST_SE_PART_11
union all
select 'PARTTEST_SE_PART_12',count(*) rowcount from PARTTEST_SE_PART_12
;
Simple Performance Verification
Each pseudo partition contains approximately 30 million rows of data, for a total of approximately 120 million rows of data.
SQL> select 'PARTTEST_SE_PART',count(*) rowcount from PARTTBL_MAIN
2 union all
3 select 'PARTTEST_SE_PART_1',count(*) rowcount from PARTTEST_SE_PART_1
4 union all
5 select 'PARTTEST_SE_PART_2',count(*) rowcount from PARTTEST_SE_PART_2
6 union all
7 select 'PARTTEST_SE_PART_3',count(*) rowcount from PARTTEST_SE_PART_3
8 union all
9 select 'PARTTEST_SE_PART_4',count(*) rowcount from PARTTEST_SE_PART_4
10 union all
11 select 'PARTTEST_SE_PART_5',count(*) rowcount from PARTTEST_SE_PART_5
12 union all
13 select 'PARTTEST_SE_PART_6',count(*) rowcount from PARTTEST_SE_PART_6
14 union all
15 select 'PARTTEST_SE_PART_7',count(*) rowcount from PARTTEST_SE_PART_7
16 union all
17 select 'PARTTEST_SE_PART_8',count(*) rowcount from PARTTEST_SE_PART_8
18 union all
19 select 'PARTTEST_SE_PART_9',count(*) rowcount from PARTTEST_SE_PART_9
20 union all
21 select 'PARTTEST_SE_PART_10',count(*) rowcount from PARTTEST_SE_PART_10
22 union all
23 select 'PARTTEST_SE_PART_11',count(*) rowcount from PARTTEST_SE_PART_11
24 union all
25 select 'PARTTEST_SE_PART_12',count(*) rowcount from PARTTEST_SE_PART_12
26 ;
'PARTTEST_SE_PART' ROWCOUNT
______________________ _____________
PARTTEST_SE_PART 2017394688
PARTTEST_SE_PART_1 0
PARTTEST_SE_PART_2 12830976
PARTTEST_SE_PART_3 12804736
PARTTEST_SE_PART_4 12837760
PARTTEST_SE_PART_5 12809088
PARTTEST_SE_PART_6 12786176
PARTTEST_SE_PART_7 12755840
PARTTEST_SE_PART_8 12817408
PARTTEST_SE_PART_9 12797184
PARTTEST_SE_PART_10 12803072
PARTTEST_SE_PART_11 12757760
PARTTEST_SE_PART_12 0
13 rows selected.
SQL>
Create a regular table that is neither a partition table nor a pseudo partition
drop table PARTTEST_SE_NONPART;
CREATE TABLE PARTTEST_SE_NONPART
(
id number,
ymd DATE,
str1 VARCHAR(120),
str2 VARCHAR(500),
str3 VARCHAR2(10),
str4 NUMBER(9,0)
);
insert into /*+ PARALLEL (4)) */ PARTTEST_SE_NONPART NOLOGGING select * from PARTTEST_SE_PART;
Pattern: With Pseudo Partition, Without Index
Now performing the actual simple performance verification.
exec rdsadmin.rdsadmin_util.flush_shared_pool;
exec rdsadmin.rdsadmin_util.flush_buffer_cache;
set autotrace on
set timing on
set pages 2000 lin 2000
select count(*) from PARTTEST_SE_PART where ymd between to_date('2017/05/01 11:00:00','YYYY/MM/DD HH24:MI:SS') and to_date('2019/05/11 12:00:00','YYYY/MM/DD HH24:MI:SS');
Execution result
SQL> select count(*) from PARTTEST_SE_PART where ymd between to_date('2017/05/01 11:00:00','YYYY/MM/DD HH24:MI:SS') and to_date('2019/05/11 12:00:00','YYYY/MM/DD HH24:MI:SS');
COUNT(*)
___________
25941120
Explain Plan
-----------------------------------------------------------
PLAN_TABLE_OUTPUT
_______________________________________________________________________________________________
Plan hash value: 2206839629
--------------------------------------------------------------------------------------------
| Id | Operation | Name | Rows | Bytes | Cost (%CPU)| Time |
--------------------------------------------------------------------------------------------
| 0 | SELECT STATEMENT | | 1 | 9 | 642K (1)| 00:00:26 |
| 1 | SORT AGGREGATE | | 1 | 9 | | |
| 2 | VIEW | PARTTEST_SE_PART | 27M| 239M| 642K (1)| 00:00:26 |
| 3 | UNION-ALL | | | | | |
|* 4 | TABLE ACCESS FULL| PARTTEST_SE_PART_1 | 1 | 9 | 2 (0)| 00:00:01 |
|* 5 | TABLE ACCESS FULL| PARTTEST_SE_PART_2 | 2606 | 23454 | 64292 (1)| 00:00:03 |
|* 6 | TABLE ACCESS FULL| PARTTEST_SE_PART_3 | 2606 | 23454 | 64298 (1)| 00:00:03 |
|* 7 | TABLE ACCESS FULL| PARTTEST_SE_PART_4 | 2606 | 23454 | 64280 (1)| 00:00:03 |
|* 8 | TABLE ACCESS FULL| PARTTEST_SE_PART_5 | 2606 | 23454 | 64293 (1)| 00:00:03 |
|* 9 | TABLE ACCESS FULL| PARTTEST_SE_PART_6 | 2606 | 23454 | 64298 (1)| 00:00:03 |
|* 10 | TABLE ACCESS FULL| PARTTEST_SE_PART_7 | 2606 | 23454 | 64269 (1)| 00:00:03 |
|* 11 | TABLE ACCESS FULL| PARTTEST_SE_PART_8 | 2606 | 23454 | 64273 (1)| 00:00:03 |
|* 12 | TABLE ACCESS FULL| PARTTEST_SE_PART_9 | 9594K| 82M| 64294 (1)| 00:00:03 |
|* 13 | TABLE ACCESS FULL| PARTTEST_SE_PART_10 | 13M| 113M| 64287 (1)| 00:00:03 |
|* 14 | TABLE ACCESS FULL| PARTTEST_SE_PART_11 | 5094K| 43M| 64294 (1)| 00:00:03 |
|* 15 | TABLE ACCESS FULL| PARTTEST_SE_PART_12 | 1 | 9 | 2 (0)| 00:00:01 |
--------------------------------------------------------------------------------------------
Predicate Information (identified by operation id):
---------------------------------------------------
4 - filter("YMD">=TO_DATE(' 2017-05-01 11:00:00', 'syyyy-mm-dd hh24:mi:ss') AND
"YMD"<=TO_DATE(' 2019-05-11 12:00:00', 'syyyy-mm-dd hh24:mi:ss'))
5 - filter("YMD">=TO_DATE(' 2017-05-01 11:00:00', 'syyyy-mm-dd hh24:mi:ss') AND
"YMD"<=TO_DATE(' 2019-05-11 12:00:00', 'syyyy-mm-dd hh24:mi:ss'))
6 - filter("YMD">=TO_DATE(' 2017-05-01 11:00:00', 'syyyy-mm-dd hh24:mi:ss') AND
"YMD"<=TO_DATE(' 2019-05-11 12:00:00', 'syyyy-mm-dd hh24:mi:ss'))
7 - filter("YMD">=TO_DATE(' 2017-05-01 11:00:00', 'syyyy-mm-dd hh24:mi:ss') AND
"YMD"<=TO_DATE(' 2019-05-11 12:00:00', 'syyyy-mm-dd hh24:mi:ss'))
8 - filter("YMD">=TO_DATE(' 2017-05-01 11:00:00', 'syyyy-mm-dd hh24:mi:ss') AND
"YMD"<=TO_DATE(' 2019-05-11 12:00:00', 'syyyy-mm-dd hh24:mi:ss'))
9 - filter("YMD">=TO_DATE(' 2017-05-01 11:00:00', 'syyyy-mm-dd hh24:mi:ss') AND
"YMD"<=TO_DATE(' 2019-05-11 12:00:00', 'syyyy-mm-dd hh24:mi:ss'))
10 - filter("YMD">=TO_DATE(' 2017-05-01 11:00:00', 'syyyy-mm-dd hh24:mi:ss') AND
"YMD"<=TO_DATE(' 2019-05-11 12:00:00', 'syyyy-mm-dd hh24:mi:ss'))
11 - filter("YMD">=TO_DATE(' 2017-05-01 11:00:00', 'syyyy-mm-dd hh24:mi:ss') AND
"YMD"<=TO_DATE(' 2019-05-11 12:00:00', 'syyyy-mm-dd hh24:mi:ss'))
12 - filter("YMD">=TO_DATE(' 2017-05-01 11:00:00', 'syyyy-mm-dd hh24:mi:ss') AND
"YMD"<=TO_DATE(' 2019-05-11 12:00:00', 'syyyy-mm-dd hh24:mi:ss'))
13 - filter("YMD">=TO_DATE(' 2017-05-01 11:00:00', 'syyyy-mm-dd hh24:mi:ss') AND
"YMD"<=TO_DATE(' 2019-05-11 12:00:00', 'syyyy-mm-dd hh24:mi:ss'))
14 - filter("YMD">=TO_DATE(' 2017-05-01 11:00:00', 'syyyy-mm-dd hh24:mi:ss') AND
"YMD"<=TO_DATE(' 2019-05-11 12:00:00', 'syyyy-mm-dd hh24:mi:ss'))
15 - filter("YMD">=TO_DATE(' 2017-05-01 11:00:00', 'syyyy-mm-dd hh24:mi:ss') AND
"YMD"<=TO_DATE(' 2019-05-11 12:00:00', 'syyyy-mm-dd hh24:mi:ss'))
Note
-----
- dynamic statistics used: dynamic sampling (level=2)
Statistics
-----------------------------------------------------------
1600 CPU used by this session
1601 CPU used when call started
3853 DB time
42 Requests to/from client
30 enqueue releases
30 enqueue requests
19833 non-idle wait count
2523 non-idle wait time
210 opened cursors cumulative
1 opened cursors current
19782 physical read total IO requests
18766 physical read total multi block requests
38 process last non-idle time
444 recursive calls
8 recursive cpu usage
2340871 session logical reads
2524 user I/O wait time
43 user calls
Elapsed: 00:00:39.026
SQL>
Pattern: Without Pseudo Partition, Without Index
exec rdsadmin.rdsadmin_util.flush_shared_pool;
exec rdsadmin.rdsadmin_util.flush_buffer_cache;
set autotrace on
set timing on
set pages 2000 lin 2000
select count(*) from PARTTEST_SE_NONPART where ymd between to_date('2017/05/01 11:00:00','YYYY/MM/DD HH24:MI:SS') and to_date('2019/05/11 12:00:00','YYYY/MM/DD HH24:MI:SS');
Execution result
SQL> set timing on
SQL> set pages 2000 lin 2000
SQL> select count(*) from PARTTEST_SE_NONPART where ymd between to_date('2017/05/01 11:00:00','YYYY/MM/DD HH24:MI:SS') and to_date('2019/05/11 12:00:00','YYYY/MM/DD HH24:MI:SS');
COUNT(*)
___________
25941120
Explain Plan
-----------------------------------------------------------
PLAN_TABLE_OUTPUT
_____________________________________________________________________________________________
Plan hash value: 145121306
------------------------------------------------------------------------------------------
| Id | Operation | Name | Rows | Bytes | Cost (%CPU)| Time |
------------------------------------------------------------------------------------------
| 0 | SELECT STATEMENT | | 1 | 9 | 635K (1)| 00:00:25 |
| 1 | SORT AGGREGATE | | 1 | 9 | | |
|* 2 | TABLE ACCESS FULL| PARTTEST_SE_NONPART | 36M| 314M| 635K (1)| 00:00:25 |
------------------------------------------------------------------------------------------
Predicate Information (identified by operation id):
---------------------------------------------------
2 - filter("YMD">=TO_DATE(' 2017-05-01 11:00:00', 'syyyy-mm-dd hh24:mi:ss')
AND "YMD"<=TO_DATE(' 2019-05-11 12:00:00', 'syyyy-mm-dd hh24:mi:ss'))
Note
-----
- dynamic statistics used: dynamic sampling (level=2)
Statistics
-----------------------------------------------------------
818 CPU used by this session
819 CPU used when call started
3118 DB time
3 Requests to/from client
4 enqueue conversions
13 enqueue releases
13 enqueue requests
1 enqueue waits
15903 non-idle wait count
2319 non-idle wait time
50 opened cursors cumulative
1 opened cursors current
21147 physical read total IO requests
18288 physical read total multi block requests
1 pinned cursors current
32 process last non-idle time
142 recursive calls
7 recursive cpu usage
2339571 session logical reads
2319 user I/O wait time
4 user calls
Elapsed: 00:00:31.506
SQL>
Using Indexes
Create indexes on each pseudo partition table, similar to local indexes.
create index PARTTEST_SE_PART_1_IDX ON PARTTEST_SE_PART_1(ymd) nologging parallel 4;
create index PARTTEST_SE_PART_2_IDX ON PARTTEST_SE_PART_2(ymd) nologging parallel 4;
create index PARTTEST_SE_PART_3_IDX ON PARTTEST_SE_PART_3(ymd) nologging parallel 4;
create index PARTTEST_SE_PART_4_IDX ON PARTTEST_SE_PART_4(ymd) nologging parallel 4;
create index PARTTEST_SE_PART_5_IDX ON PARTTEST_SE_PART_5(ymd) nologging parallel 4;
create index PARTTEST_SE_PART_6_IDX ON PARTTEST_SE_PART_6(ymd) nologging parallel 4;
create index PARTTEST_SE_PART_7_IDX ON PARTTEST_SE_PART_7(ymd) nologging parallel 4;
create index PARTTEST_SE_PART_8_IDX ON PARTTEST_SE_PART_8(ymd) nologging parallel 4;
create index PARTTEST_SE_PART_9_IDX ON PARTTEST_SE_PART_9(ymd) nologging parallel 4;
create index PARTTEST_SE_PART_10_IDX ON PARTTEST_SE_PART_10(ymd) nologging parallel 4;
create index PARTTEST_SE_PART_11_IDX ON PARTTEST_SE_PART_11(ymd) nologging parallel 4;
create index PARTTEST_SE_PART_12_IDX ON PARTTEST_SE_PART_12(ymd) nologging parallel 4;
create index PARTTEST_SE_NONPART_IDX ON PARTTEST_SE_NONPART(ymd) nologging parallel 4;
-
Pattern: With Pseudo Partition, With Index
exec rdsadmin.rdsadmin_util.flush_shared_pool;
exec rdsadmin.rdsadmin_util.flush_buffer_cache;
set autotrace on
set timing on
set pages 2000 lin 2000
select count(*) from PARTTEST_SE_PART where ymd between to_date('2017/05/01 11:00:00','YYYY/MM/DD HH24:MI:SS') and to_date('2019/05/11 12:00:00','YYYY/MM/DD HH24:MI:SS');
SQL> select count(*) from PARTTEST_SE_PART where ymd between to_date('2017/05/01 11:00:00','YYYY/MM/DD HH24:MI:SS') and to_date('2019/05/11 12:00:00','YYYY/MM/DD HH24:MI:SS');
COUNT(*)
___________
25941120
Explain Plan
-----------------------------------------------------------
PLAN_TABLE_OUTPUT
_______________________________________________________________________________________________________________________________________
Plan hash value: 1340602939
------------------------------------------------------------------------------------------------------------------------------------
| Id | Operation | Name | Rows | Bytes | Cost (%CPU)| Time | TQ |IN-OUT| PQ Distrib |
------------------------------------------------------------------------------------------------------------------------------------
| 0 | SELECT STATEMENT | | 1 | 9 | 28333 (1)| 00:00:02 | | | |
| 1 | SORT AGGREGATE | | 1 | 9 | | | | | |
| 2 | PX COORDINATOR | | | | | | | | |
| 3 | PX SEND QC (RANDOM) | :TQ10000 | 1 | 9 | | | Q1,00 | P->S | QC (RAND) |
| 4 | SORT AGGREGATE | | 1 | 9 | | | Q1,00 | PCWP | |
| 5 | VIEW | PARTTEST_SE_PART | 27M| 239M| 28333 (1)| 00:00:02 | Q1,00 | PCWP | |
| 6 | UNION-ALL | | | | | | Q1,00 | PCWP | |
| 7 | PX SELECTOR | | | | | | Q1,00 | PCWP | |
|* 8 | INDEX RANGE SCAN | PARTTEST_SE_PART_1_IDX | 1 | 9 | 0 (0)| 00:00:01 | Q1,00 | PCWP | |
| 9 | PX SELECTOR | | | | | | Q1,00 | PCWP | |
|* 10 | INDEX RANGE SCAN | PARTTEST_SE_PART_2_IDX | 1 | 9 | 2 (0)| 00:00:01 | Q1,00 | PCWP | |
| 11 | PX SELECTOR | | | | | | Q1,00 | PCWP | |
|* 12 | INDEX RANGE SCAN | PARTTEST_SE_PART_3_IDX | 1 | 9 | 2 (0)| 00:00:01 | Q1,00 | PCWP | |
| 13 | PX SELECTOR | | | | | | Q1,00 | PCWP | |
|* 14 | INDEX RANGE SCAN | PARTTEST_SE_PART_4_IDX | 1 | 9 | 2 (0)| 00:00:01 | Q1,00 | PCWP | |
| 15 | PX SELECTOR | | | | | | Q1,00 | PCWP | |
|* 16 | INDEX RANGE SCAN | PARTTEST_SE_PART_5_IDX | 1 | 9 | 2 (0)| 00:00:01 | Q1,00 | PCWP | |
| 17 | PX SELECTOR | | | | | | Q1,00 | PCWP | |
|* 18 | INDEX RANGE SCAN | PARTTEST_SE_PART_6_IDX | 1 | 9 | 2 (0)| 00:00:01 | Q1,00 | PCWP | |
| 19 | PX SELECTOR | | | | | | Q1,00 | PCWP | |
|* 20 | INDEX RANGE SCAN | PARTTEST_SE_PART_7_IDX | 1 | 9 | 2 (0)| 00:00:01 | Q1,00 | PCWP | |
| 21 | PX SELECTOR | | | | | | Q1,00 | PCWP | |
|* 22 | INDEX RANGE SCAN | PARTTEST_SE_PART_8_IDX | 1 | 9 | 2 (0)| 00:00:01 | Q1,00 | PCWP | |
| 23 | PX BLOCK ITERATOR | | 9594K| 82M| 9447 (1)| 00:00:01 | Q1,00 | PCWC | |
|* 24 | INDEX FAST FULL SCAN| PARTTEST_SE_PART_9_IDX | 9594K| 82M| 9447 (1)| 00:00:01 | Q1,00 | PCWP | |
| 25 | PX BLOCK ITERATOR | | 13M| 113M| 9452 (1)| 00:00:01 | Q1,00 | PCWC | |
|* 26 | INDEX FAST FULL SCAN| PARTTEST_SE_PART_10_IDX | 13M| 113M| 9452 (1)| 00:00:01 | Q1,00 | PCWP | |
| 27 | PX BLOCK ITERATOR | | 5094K| 43M| 9419 (1)| 00:00:01 | Q1,00 | PCWC | |
|* 28 | INDEX FAST FULL SCAN| PARTTEST_SE_PART_11_IDX | 5094K| 43M| 9419 (1)| 00:00:01 | Q1,00 | PCWP | |
| 29 | PX SELECTOR | | | | | | Q1,00 | PCWP | |
|* 30 | INDEX RANGE SCAN | PARTTEST_SE_PART_12_IDX | 1 | 9 | 0 (0)| 00:00:01 | Q1,00 | PCWP | |
------------------------------------------------------------------------------------------------------------------------------------
Predicate Information (identified by operation id):
---------------------------------------------------
8 - access("YMD">=TO_DATE(' 2017-05-01 11:00:00', 'syyyy-mm-dd hh24:mi:ss') AND "YMD"<=TO_DATE(' 2019-05-11 12:00:00',
'syyyy-mm-dd hh24:mi:ss'))
10 - access("YMD">=TO_DATE(' 2017-05-01 11:00:00', 'syyyy-mm-dd hh24:mi:ss') AND "YMD"<=TO_DATE(' 2019-05-11 12:00:00',
'syyyy-mm-dd hh24:mi:ss'))
12 - access("YMD">=TO_DATE(' 2017-05-01 11:00:00', 'syyyy-mm-dd hh24:mi:ss') AND "YMD"<=TO_DATE(' 2019-05-11 12:00:00',
'syyyy-mm-dd hh24:mi:ss'))
14 - access("YMD">=TO_DATE(' 2017-05-01 11:00:00', 'syyyy-mm-dd hh24:mi:ss') AND "YMD"<=TO_DATE(' 2019-05-11 12:00:00',
'syyyy-mm-dd hh24:mi:ss'))
16 - access("YMD">=TO_DATE(' 2017-05-01 11:00:00', 'syyyy-mm-dd hh24:mi:ss') AND "YMD"<=TO_DATE(' 2019-05-11 12:00:00',
'syyyy-mm-dd hh24:mi:ss'))
18 - access("YMD">=TO_DATE(' 2017-05-01 11:00:00', 'syyyy-mm-dd hh24:mi:ss') AND "YMD"<=TO_DATE(' 2019-05-11 12:00:00',
'syyyy-mm-dd hh24:mi:ss'))
20 - access("YMD">=TO_DATE(' 2017-05-01 11:00:00', 'syyyy-mm-dd hh24:mi:ss') AND "YMD"<=TO_DATE(' 2019-05-11 12:00:00',
'syyyy-mm-dd hh24:mi:ss'))
22 - access("YMD">=TO_DATE(' 2017-05-01 11:00:00', 'syyyy-mm-dd hh24:mi:ss') AND "YMD"<=TO_DATE(' 2019-05-11 12:00:00',
'syyyy-mm-dd hh24:mi:ss'))
24 - filter("YMD">=TO_DATE(' 2017-05-01 11:00:00', 'syyyy-mm-dd hh24:mi:ss') AND "YMD"<=TO_DATE(' 2019-05-11 12:00:00',
'syyyy-mm-dd hh24:mi:ss'))
26 - filter("YMD">=TO_DATE(' 2017-05-01 11:00:00', 'syyyy-mm-dd hh24:mi:ss') AND "YMD"<=TO_DATE(' 2019-05-11 12:00:00',
'syyyy-mm-dd hh24:mi:ss'))
28 - filter("YMD">=TO_DATE(' 2017-05-01 11:00:00', 'syyyy-mm-dd hh24:mi:ss') AND "YMD"<=TO_DATE(' 2019-05-11 12:00:00',
'syyyy-mm-dd hh24:mi:ss'))
30 - access("YMD">=TO_DATE(' 2017-05-01 11:00:00', 'syyyy-mm-dd hh24:mi:ss') AND "YMD"<=TO_DATE(' 2019-05-11 12:00:00',
'syyyy-mm-dd hh24:mi:ss'))
Note
-----
- dynamic statistics used: dynamic sampling (level=2)
Statistics
-----------------------------------------------------------
472 CPU used by this session
6 CPU used when call started
709 DB time
3 Requests to/from client
8 enqueue conversions
50 enqueue releases
54 enqueue requests
148 in call idle wait time
2 messages sent
1320 non-idle wait count
93 non-idle wait time
273 opened cursors cumulative
1 opened cursors current
1290 physical read total IO requests
922 physical read total multi block requests
1 pinned cursors current
2 process last non-idle time
557 recursive calls
471 recursive cpu usage
113998 session logical reads
93 user I/O wait time
20 user calls
Elapsed: 00:00:01.856
-
Pattern: Without Pseudo Partition, With Index
exec rdsadmin.rdsadmin_util.flush_shared_pool;
exec rdsadmin.rdsadmin_util.flush_buffer_cache;
set autotrace on
set timing on
set pages 2000 lin 2000
select count(*) from PARTTEST_SE_NONPART where ymd between to_date('2017/05/01 11:00:00','YYYY/MM/DD HH24:MI:SS') and to_date('2019/05/11 12:00:00','YYYY/MM/DD HH24:MI:SS');
SQL> select count(*) from PARTTEST_SE_NONPART where ymd between to_date('2017/05/01 11:00:00','YYYY/MM/DD HH24:MI:SS') and to_date('2019/05/11 12:00:00','YYYY/MM/DD HH24:MI:SS');
COUNT(*)
___________
25941120
Explain Plan
-----------------------------------------------------------
PLAN_TABLE_OUTPUT
_____________________________________________________________________________________________________________________________________
Plan hash value: 2697818807
----------------------------------------------------------------------------------------------------------------------------------
| Id | Operation | Name | Rows | Bytes | Cost (%CPU)| Time | TQ |IN-OUT| PQ Distrib |
----------------------------------------------------------------------------------------------------------------------------------
| 0 | SELECT STATEMENT | | 1 | 9 | 93390 (1)| 00:00:04 | | | |
| 1 | SORT AGGREGATE | | 1 | 9 | | | | | |
| 2 | PX COORDINATOR | | | | | | | | |
| 3 | PX SEND QC (RANDOM) | :TQ10000 | 1 | 9 | | | Q1,00 | P->S | QC (RAND) |
| 4 | SORT AGGREGATE | | 1 | 9 | | | Q1,00 | PCWP | |
| 5 | PX BLOCK ITERATOR | | 36M| 314M| 93390 (1)| 00:00:04 | Q1,00 | PCWC | |
|* 6 | INDEX FAST FULL SCAN| PARTTEST_SE_NONPART_IDX | 36M| 314M| 93390 (1)| 00:00:04 | Q1,00 | PCWP | |
----------------------------------------------------------------------------------------------------------------------------------
Predicate Information (identified by operation id):
---------------------------------------------------
6 - filter("YMD">=TO_DATE(' 2017-05-01 11:00:00', 'syyyy-mm-dd hh24:mi:ss') AND "YMD"<=TO_DATE(' 2019-05-11 12:00:00',
'syyyy-mm-dd hh24:mi:ss'))
Note
-----
- dynamic statistics used: dynamic sampling (level=2)
Statistics
-----------------------------------------------------------
867 CPU used by this session
2 CPU used when call started
1853 DB time
3 Requests to/from client
8 enqueue conversions
16 enqueue releases
20 enqueue requests
1 enqueue waits
404 in call idle wait time
2 messages sent
1261 non-idle wait count
577 non-idle wait time
49 opened cursors cumulative
1 opened cursors current
2774 physical read total IO requests
2711 physical read total multi block requests
1 pinned cursors current
4 process last non-idle time
136 recursive calls
866 recursive cpu usage
344724 session logical reads
576 user I/O wait time
20 user calls
Elapsed: 00:00:04.011
Results
The pseudo partition with index pattern was able to search quickly using indexes. As can be seen from the Predicate Information, indexes were used as access predicates to efficiently process unnecessary tables. (= Fewer blocks are being read) The difference between access and filter in Predicate Information is as follows: access means using something to “access” data, meaning it only “accesses” relevant data. filter means retrieving more data than necessary and filtering after retrieval. The filter is applied to all rows, and only rows that pass the filter are sent.
(Also, in the pattern without pseudo partitions and with indexes, I couldn’t immediately understand the optimizer’s reasoning for why INDEX FAST FULL SCAN is being used.)
| With Pseudo Partition | Without Pseudo Partition | |
|---|---|---|
| With Index | 1.856 | 4.011 |
| No Index | 39.026 | 31.506 |
Overall Results
In this case, there was no significant difference between the partition configuration and the pseudo partition, and in fact the pseudo partition with indexes performed faster. I’ve roughly understood the behavior and configuration of the pseudo partition approach, so this concludes the verification notes for now. Whether this is operationally feasible, how it performs for other search patterns, etc., still need to be considered.
Performance values can vary significantly depending on the amount of data retrieved and the optimizer’s execution plan, so no definitive judgments can be made based on this alone. The recommendation is to conduct a PoC including operational considerations before deciding what to do about the partition option.
| With Partition | Without Partition | |
|---|---|---|
| With Index | 9.506 | 21.901 |
| No Index | 8.748 | 31.136 |
| With Pseudo Partition | Without Pseudo Partition | |
|---|---|---|
| With Index | 1.856 | 4.011 |
| No Index | 39.026 | 31.506 |
